4-Wing Spiral Arc Profile PDC Drill Bit for Water Well & Mining
Four-Wing Spiral Arc Profile for Cutting and Cuttings Removal4-Wing Spiral Arc Profile PDC Drill Bit A four-wing PDC drill bit combining spiral blade channels with an arc-profile cutting structure for...
Four-Wing Spiral Arc Profile for Cutting and Cuttings Removal
Four-Wing Spiral Arc Profile for Cutting and Cuttings Removal 4-Wing Spiral Arc Profile PDC Drill Bit A four-wing PDC drill bit combining spiral blade channels with an arc-profile cutting structure for stable drilling and cuttings removal. Key Advantages Large PDC cutters support efficient formation breaking. Spiral blade channels support cuttings flow. Four-wing arc-profile structure balances...
Design Advantage 1
Curved cutting geometry supports continuous formation contact.
Design Advantage 2
Spiral blade channels help move cuttings away from the cutting face.
Design Advantage 3
Four blades balance cutting openness with structural support.

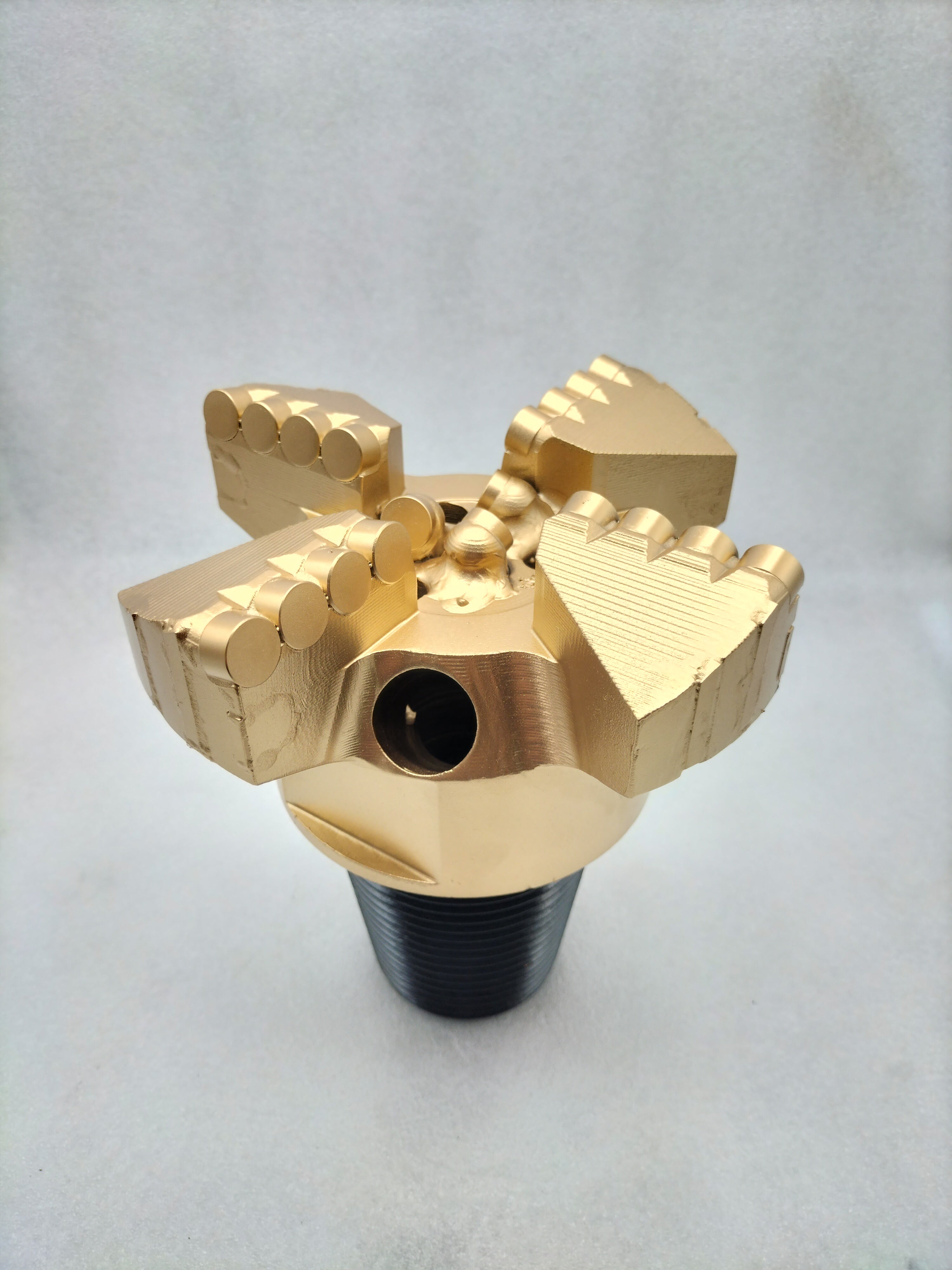

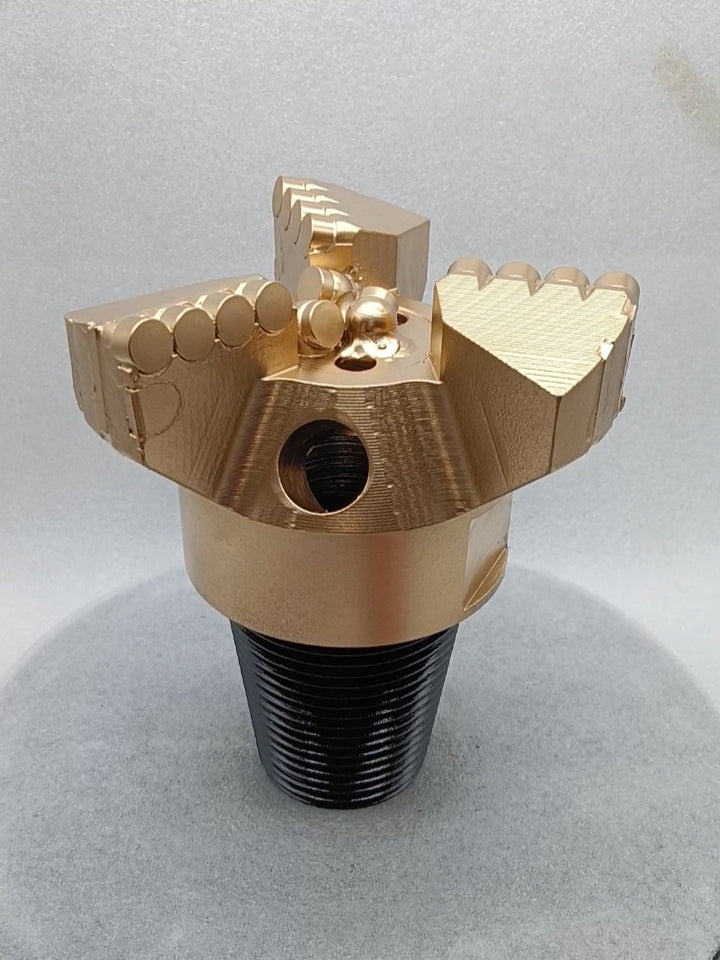

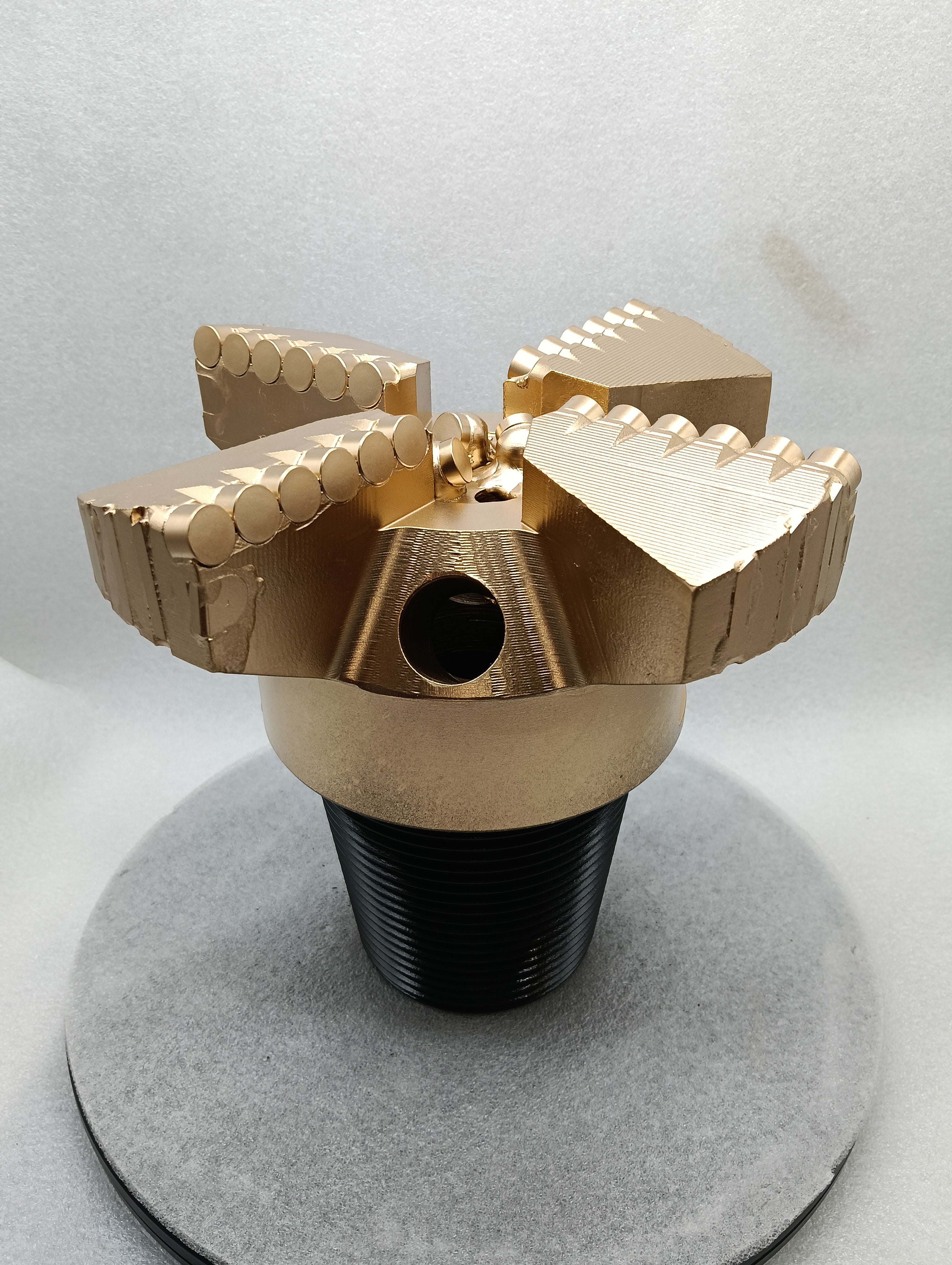

Actual Product Views
Technical Specifications
| Product type | Four-wing spiral arc-profile coreless PDC drill bit |
|---|---|
| Cutting structure | Four spiral arc-profile blades with PDC cutters and flushing passages |
| Primary applications | Water wells, mining and geological drilling |
| Recommended formations | Soft to medium formations; formation matching is required |
| Size | 95.3 mm / 3 3/4" · 104.8 mm / 4 1/8" · 114.3 mm / 4 1/2" · 120.7 mm / 4 3/4" · 149.2 mm / 5 7/8" · 165.1 mm / 6 1/2" · 200.0 mm / 7 7/8" · 215.9 mm / 8 1/2" · 244.5 mm / 9 5/8" · Custom Size |
| Connection | Threaded connection matched to the customer's drill string |
| Customization | Diameter, connection, cutter layout, waterways, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- The cutting structure matches the required drilling method.
- Formation and flushing details can be supplied for review.
- A customized diameter or connection is required.
Confirm before ordering
- Required diameter and thread connection
- Formation hardness, abrasiveness and fracture condition
- Rig model, drilling method, target depth and quantity
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
Hunan FengSu Drill Bit Co., Ltd. has 5 independent workshops and hundreds of employees. It has cooperated with China University of Geosciences and hired dozens of professors and doctors to research the ultra-wear-resistant material, with over 50 applications for patents. It's the manufacture of drill bit products which are efficient and strong enough to meet varied drilling requirements like natural gas, oil, coal exploration, geological exploration, and water wells. Certainly, our products will work perfectly under all kinds of rock environments. Adhering to the concept of unremitting technological innovation, strict quality control, and guaranteeing the reliability and professionalism in the products that we offer.
