Custom Multi-Wing Concave PDC Drill Bit for Water Well & Mining
Custom Multi-Wing Concave Geometry with Male or Female ConnectionsCustom Multi-Wing Concave PDC Drill Bit A customizable multi-wing concave PDC drill bit available with male or female thread connections for water...
Custom Multi-Wing Concave Geometry with Male or Female Connections
Custom Multi-Wing Concave Geometry with Male or Female Connections Custom Multi-Wing Concave PDC Drill Bit A customizable multi-wing concave PDC drill bit available with male or female thread connections for water well, mining and engineering drilling. Key Advantages Concave profile assists centering and directional stability. Multi-wing layout distributes cutting load. Male and female connection configurations...
Design Advantage 1
The recessed center supports centering and directional stability.
Design Advantage 2
Multiple blades distribute cutting load and support smooth drilling.
Design Advantage 3
Male-thread and female-thread configurations are available.

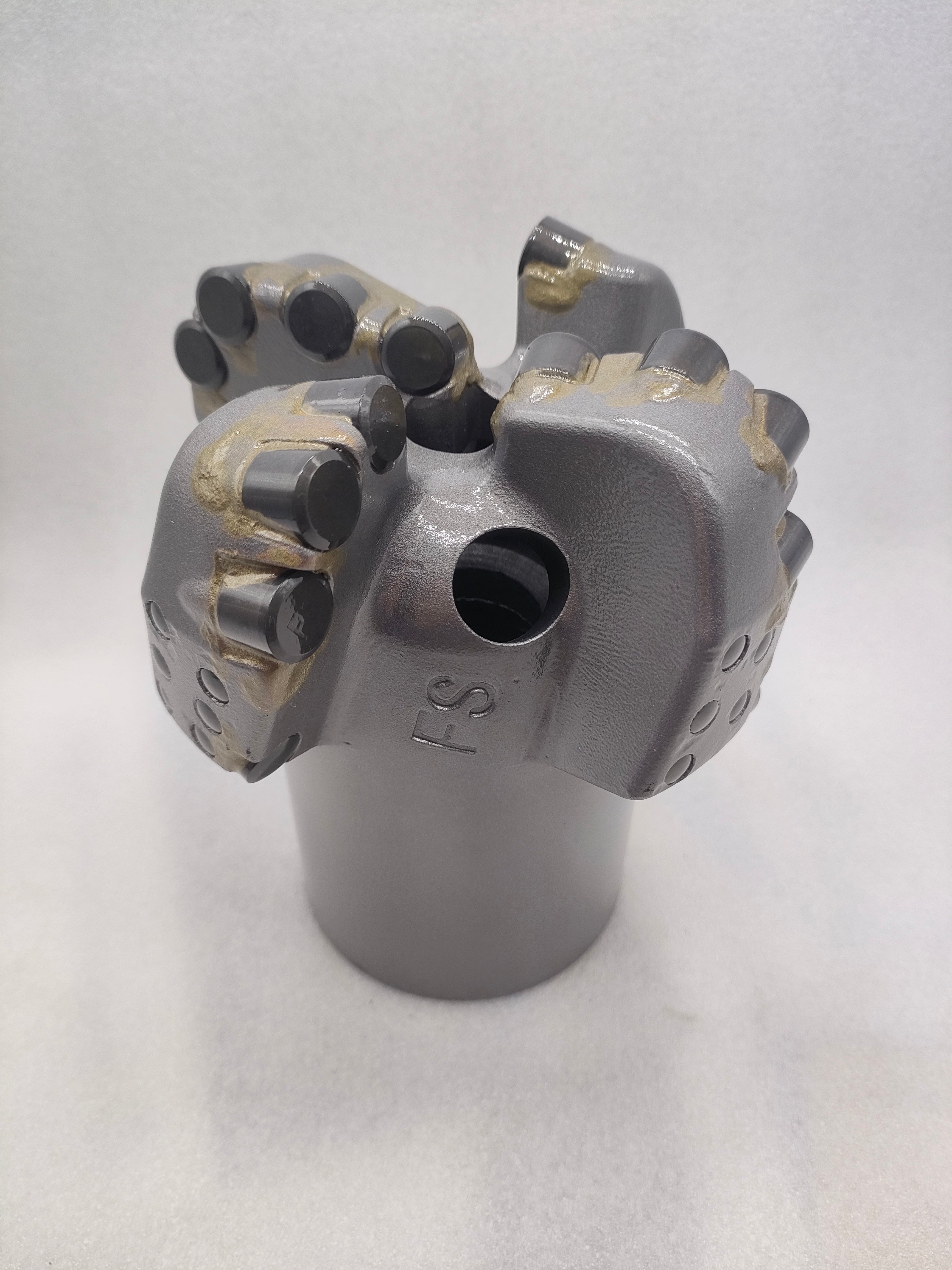

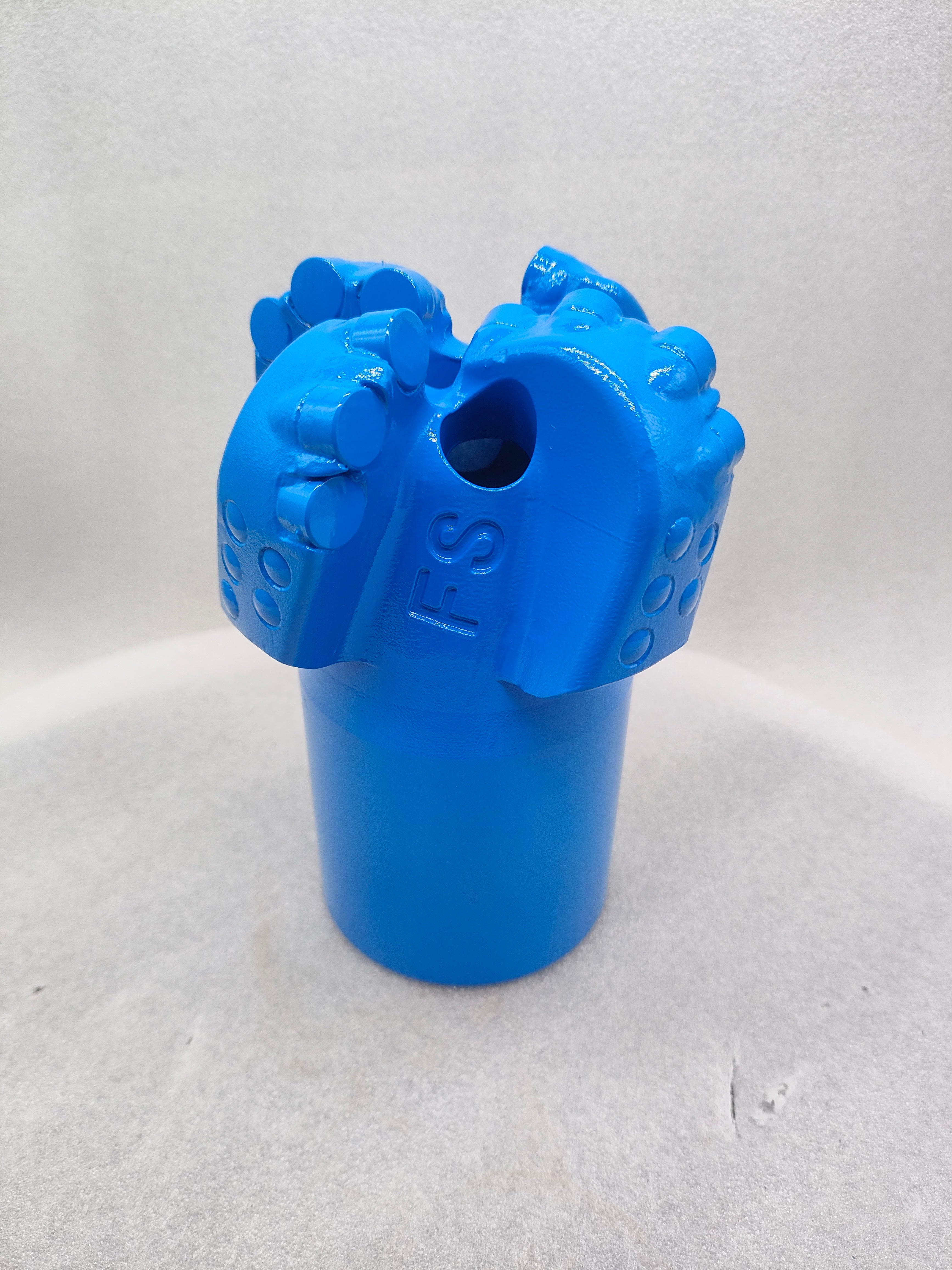

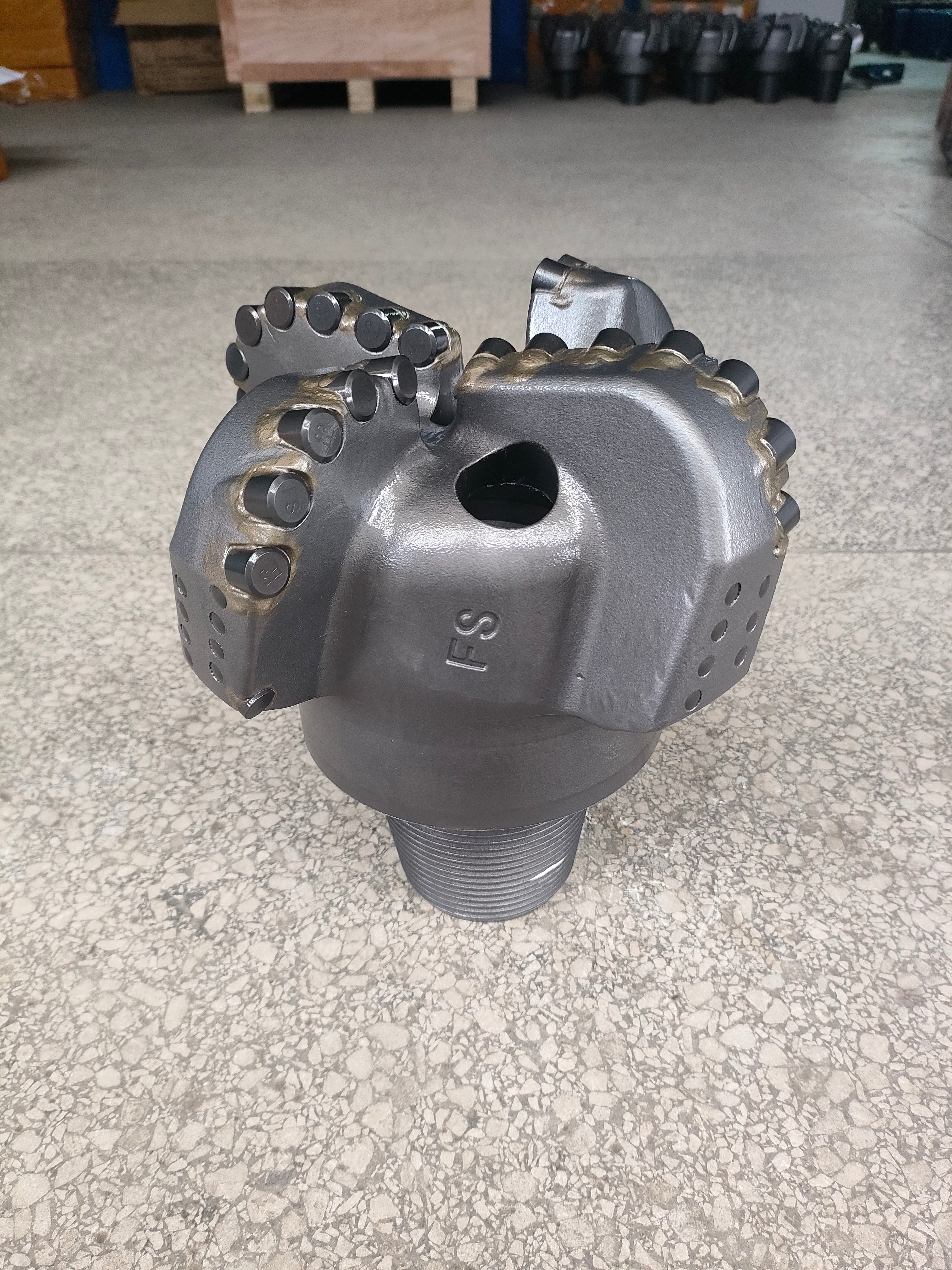

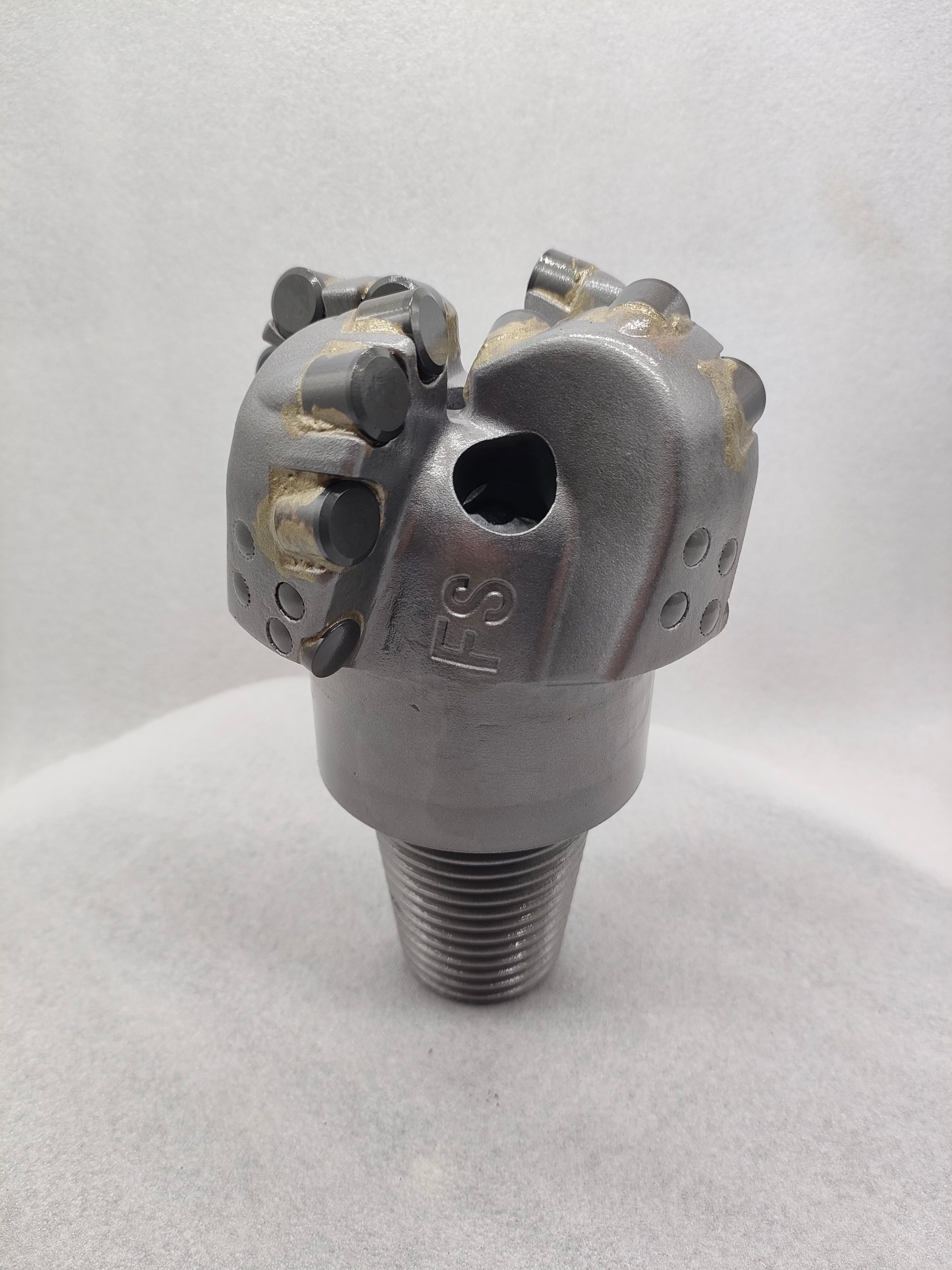

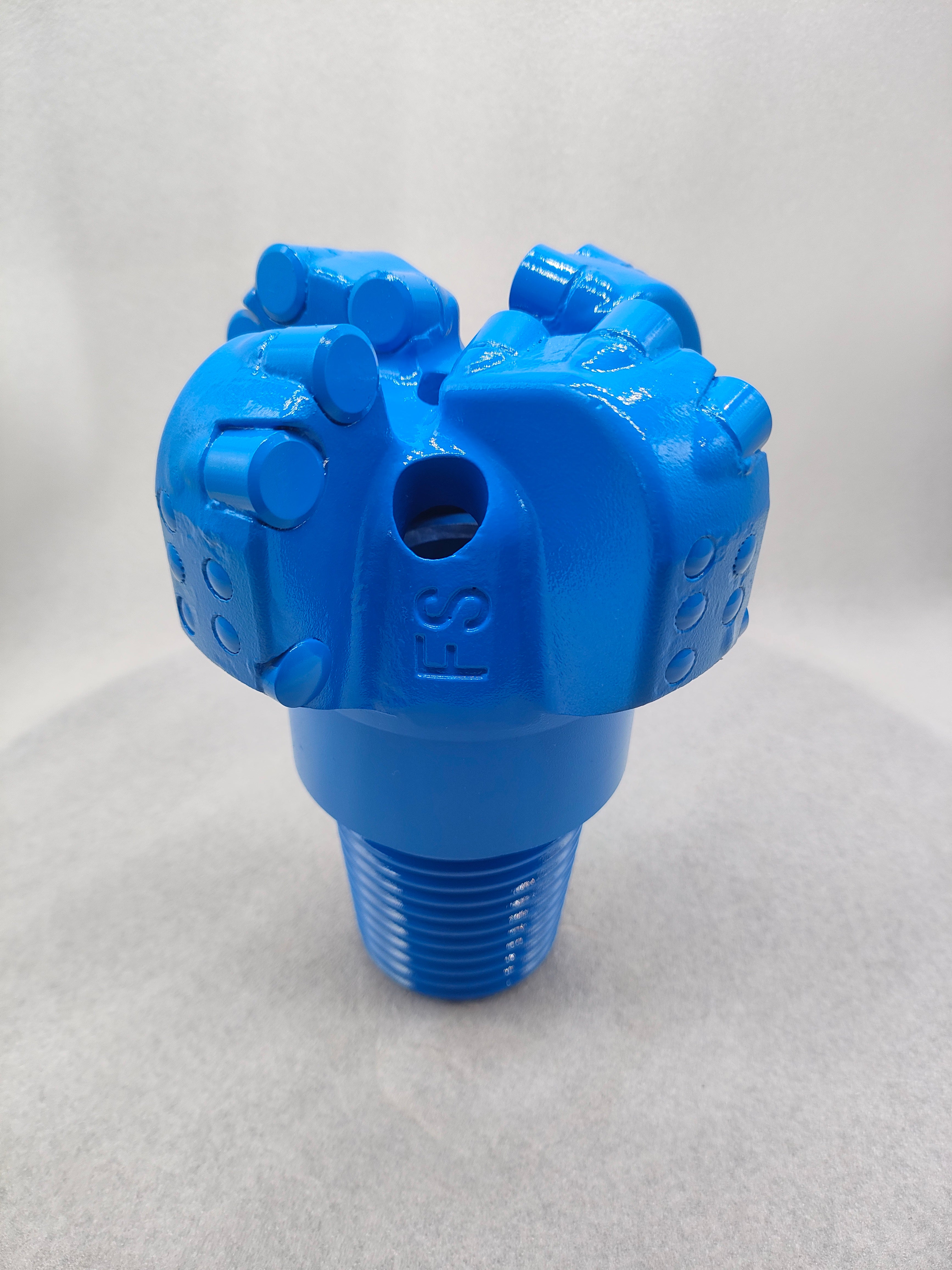

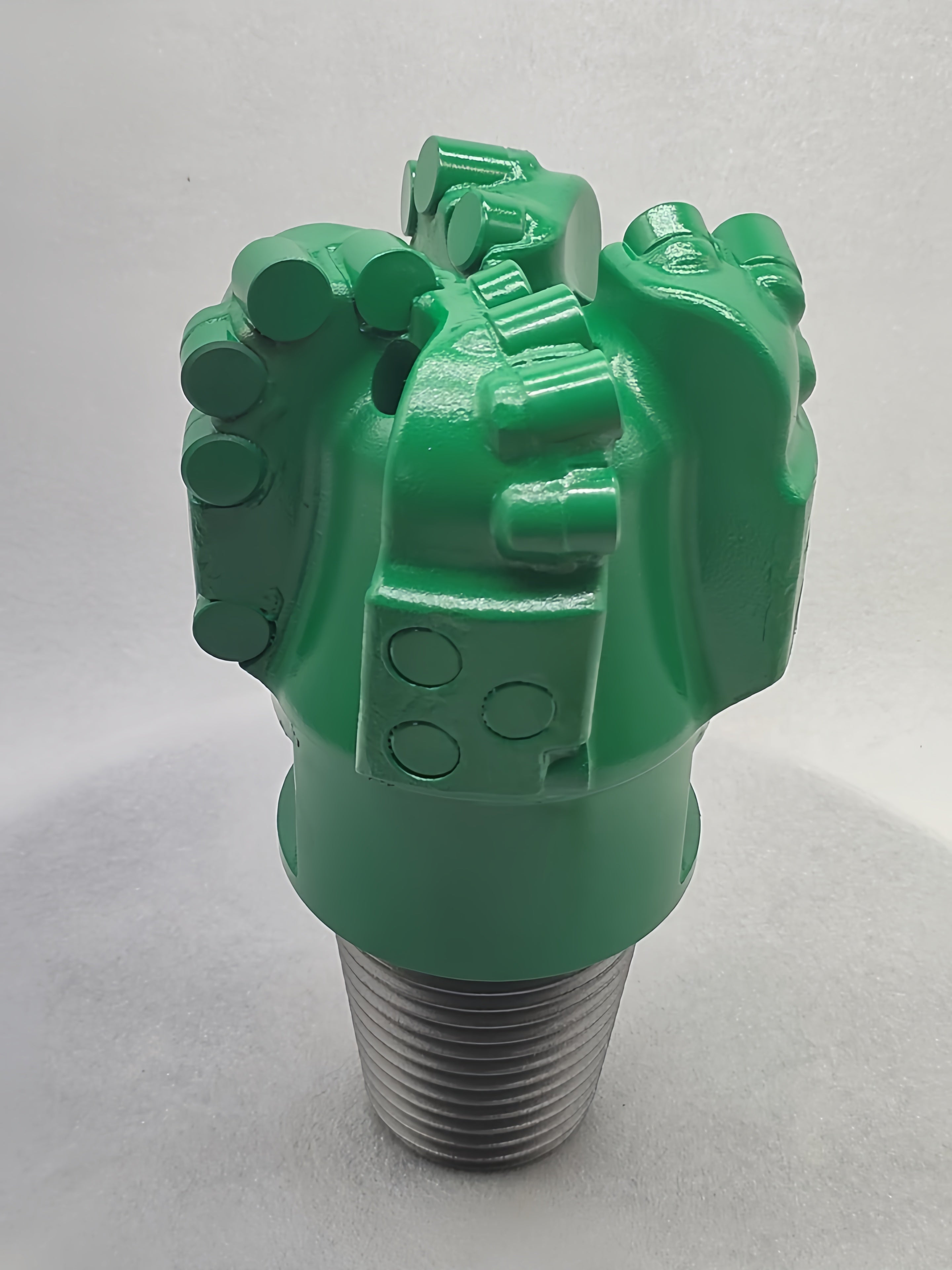

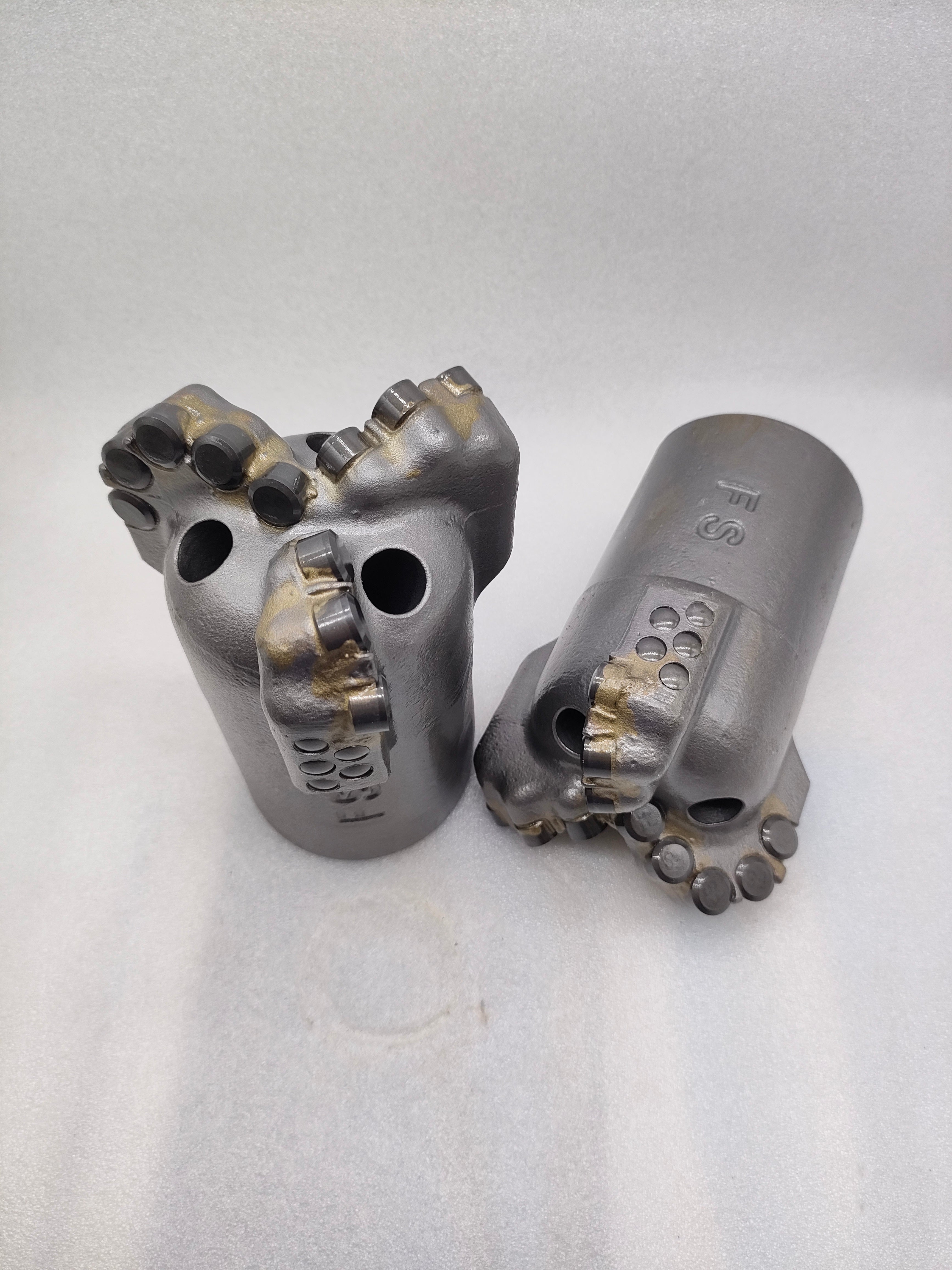

Actual Product Views
Technical Specifications
| Product type | Custom multi-wing concave coreless PDC drill bit |
|---|---|
| Cutting structure | Multi-wing concave fixed-cutter geometry with male and female connection options |
| Primary applications | Water wells, mining, geological exploration and engineering boreholes |
| Recommended formations | Soft to medium formations; final wing and cutter configuration requires review |
| Size | 98.4 mm / 3 7/8" · 114.3 mm / 4 1/2" · 149.2 mm / 5 7/8" · 165.1 mm / 6 1/2" · 200.0 mm / 7 7/8" · 215.9 mm / 8 1/2" · 244.5 mm / 9 5/8" · 311.2 mm / 12 1/4" · Custom Size |
| Connection | Male Thread · Female Thread |
| Connection | Threaded connection matched to the customer's drill string |
| Customization | Diameter, connection, cutter layout, waterways, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- The cutting structure matches the required drilling method.
- Formation and flushing details can be supplied for review.
- A customized diameter or connection is required.
Confirm before ordering
- Required diameter and thread connection
- Formation hardness, abrasiveness and fracture condition
- Rig model, drilling method, target depth and quantity
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
Hunan FengSu Drill Bit Co., Ltd. has 5 independent workshops and hundreds of employees. It has cooperated with China University of Geosciences and hired dozens of professors and doctors to research the ultra-wear-resistant material, with over 50 applications for patents. It's the manufacture of drill bit products which are efficient and strong enough to meet varied drilling requirements like natural gas, oil, coal exploration, geological exploration, and water wells. Certainly, our products will work perfectly under all kinds of rock environments. Adhering to the concept of unremitting technological innovation, strict quality control, and guaranteeing the reliability and professionalism in the products that we offer.
