4-Wing Spiral Concave PDC Drill Bit for Water Well & Engineering
Spiral Cuttings Flow Combined with Concave Guidance4-Wing Spiral Concave PDC Drill Bit A four-wing spiral concave PDC drill bit designed to combine directional stability with efficient cuttings flow. Key Advantages...
Spiral Cuttings Flow Combined with Concave Guidance
Spiral Cuttings Flow Combined with Concave Guidance 4-Wing Spiral Concave PDC Drill Bit A four-wing spiral concave PDC drill bit designed to combine directional stability with efficient cuttings flow. Key Advantages Spiral blade channels support flushing and cuttings removal. Concave profile helps guide the bit during drilling. Four-wing layout balances cutting efficiency and stability. Recommended...
Design Advantage 1
Spiral blade channels support flushing and cuttings evacuation.
Design Advantage 2
The recessed center helps guide the bit and stabilize the cutting face.
Design Advantage 3
Four-wing layout balances cutting efficiency and stability.

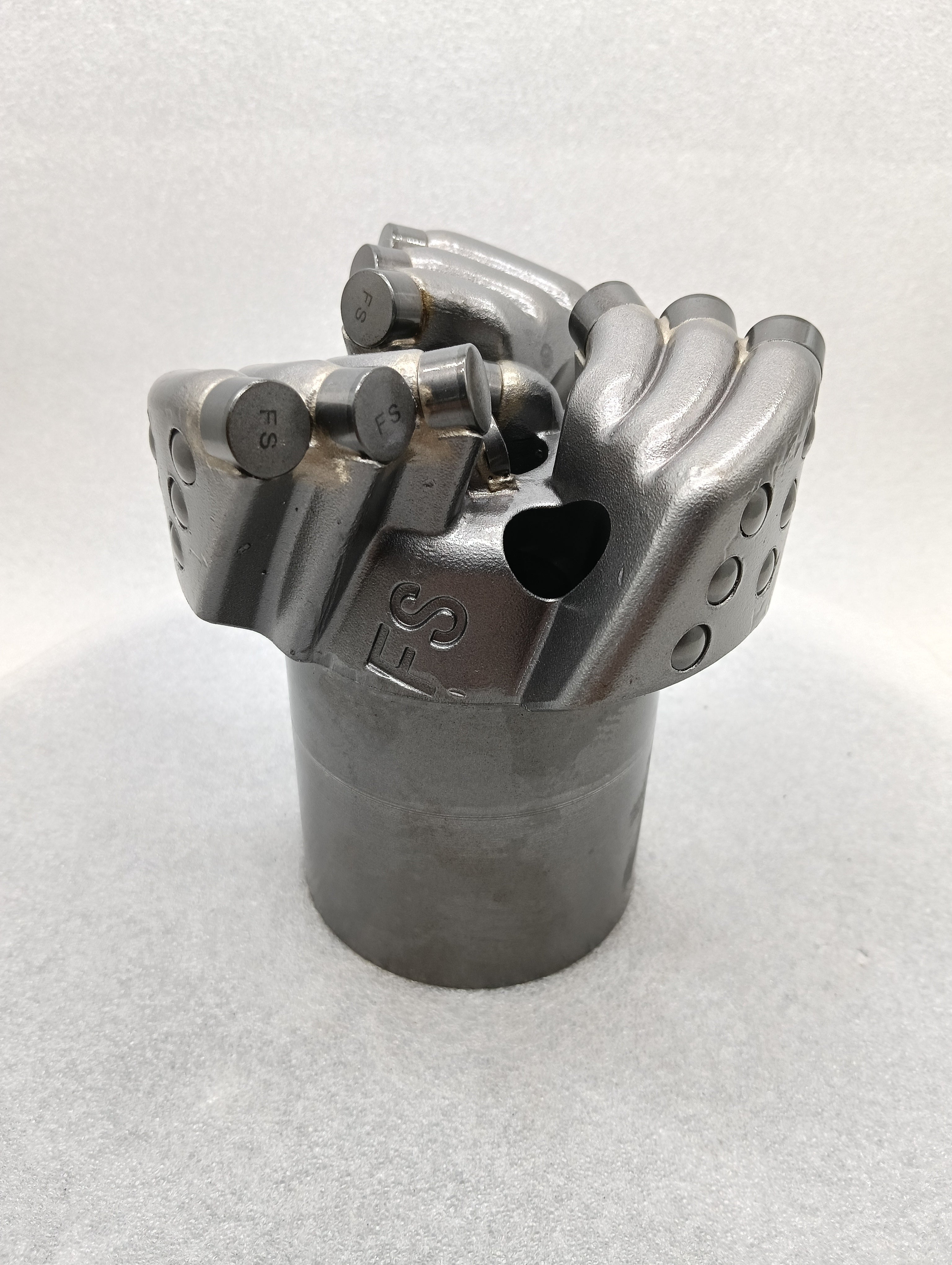

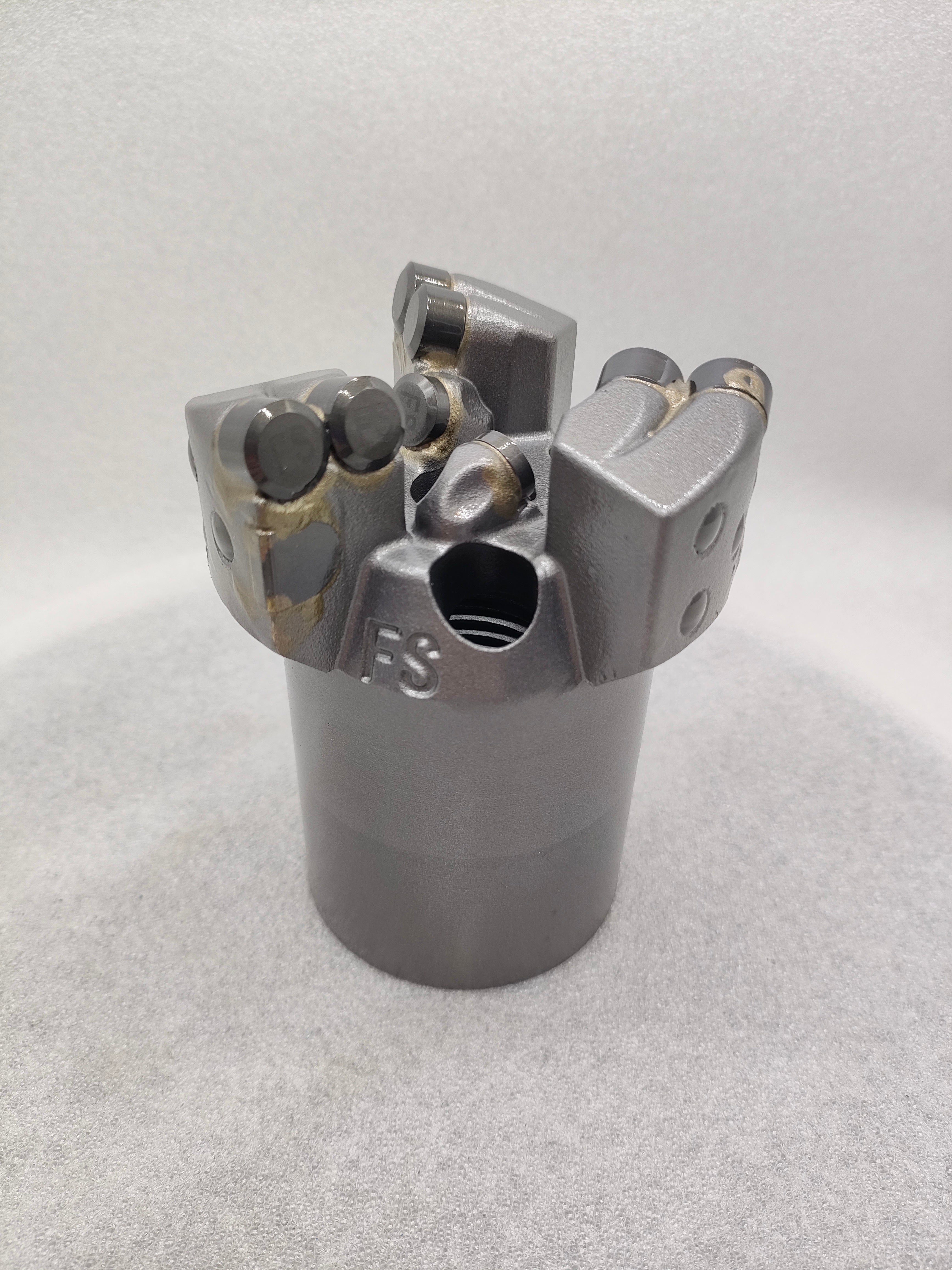

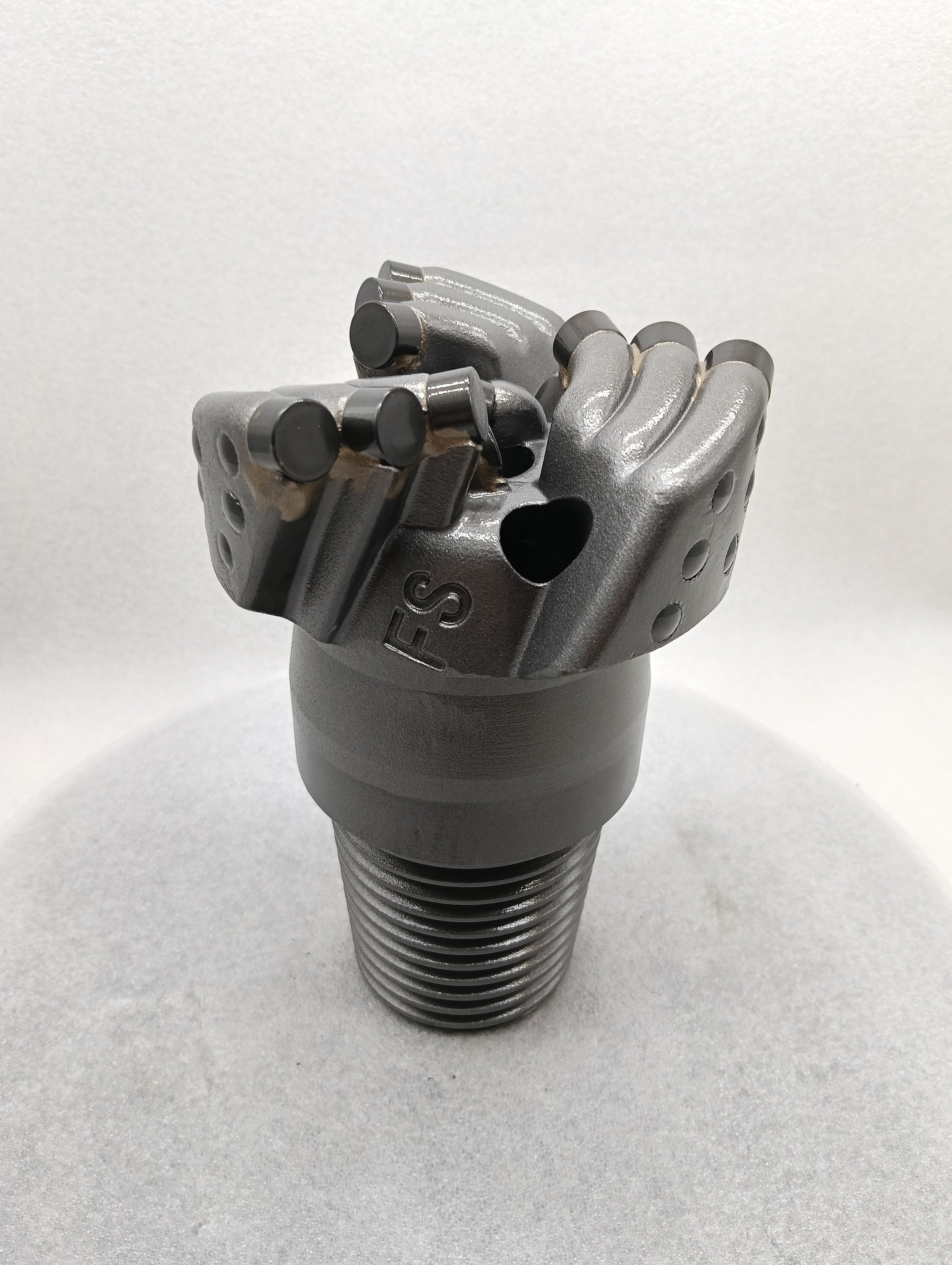

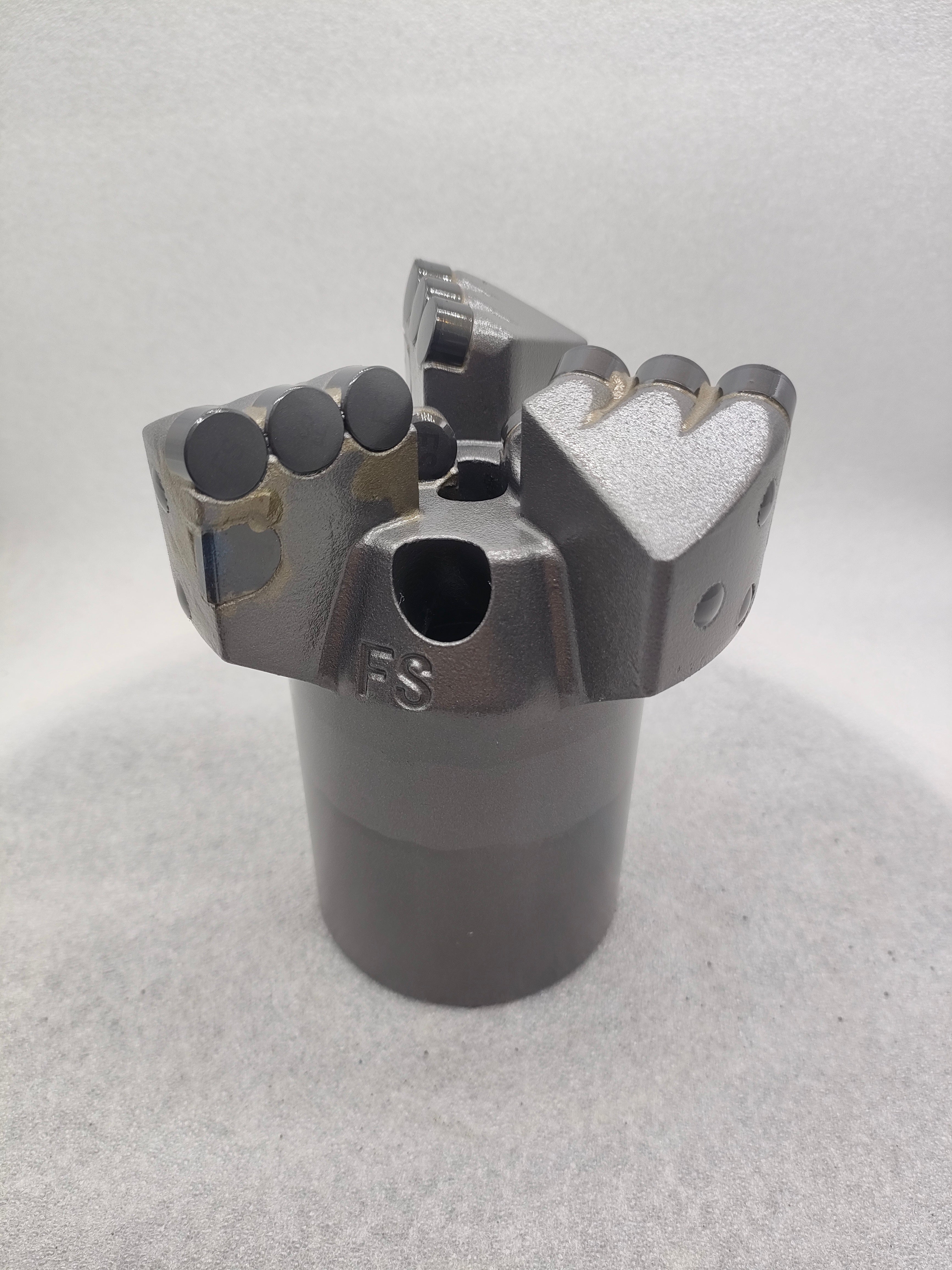

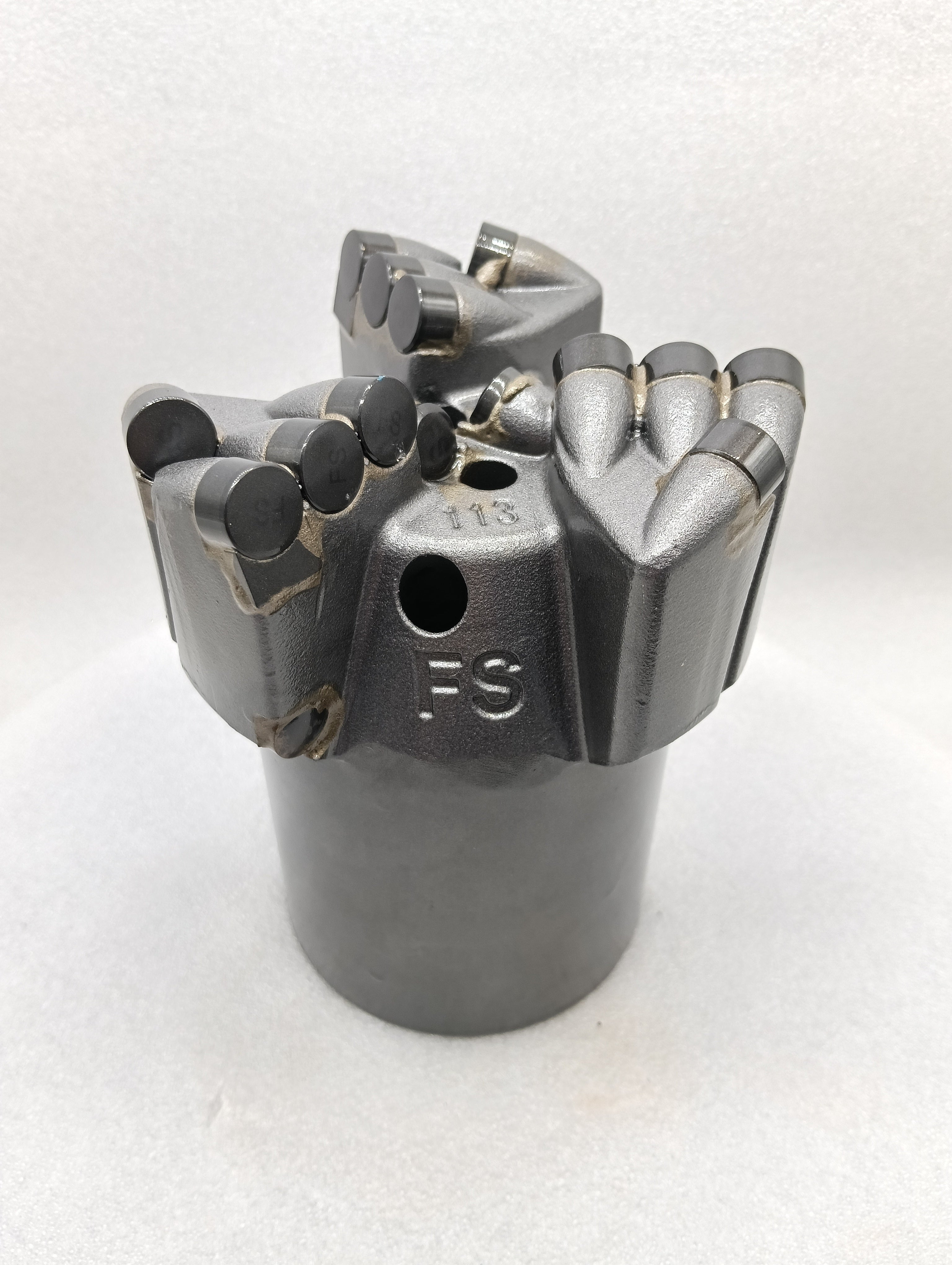

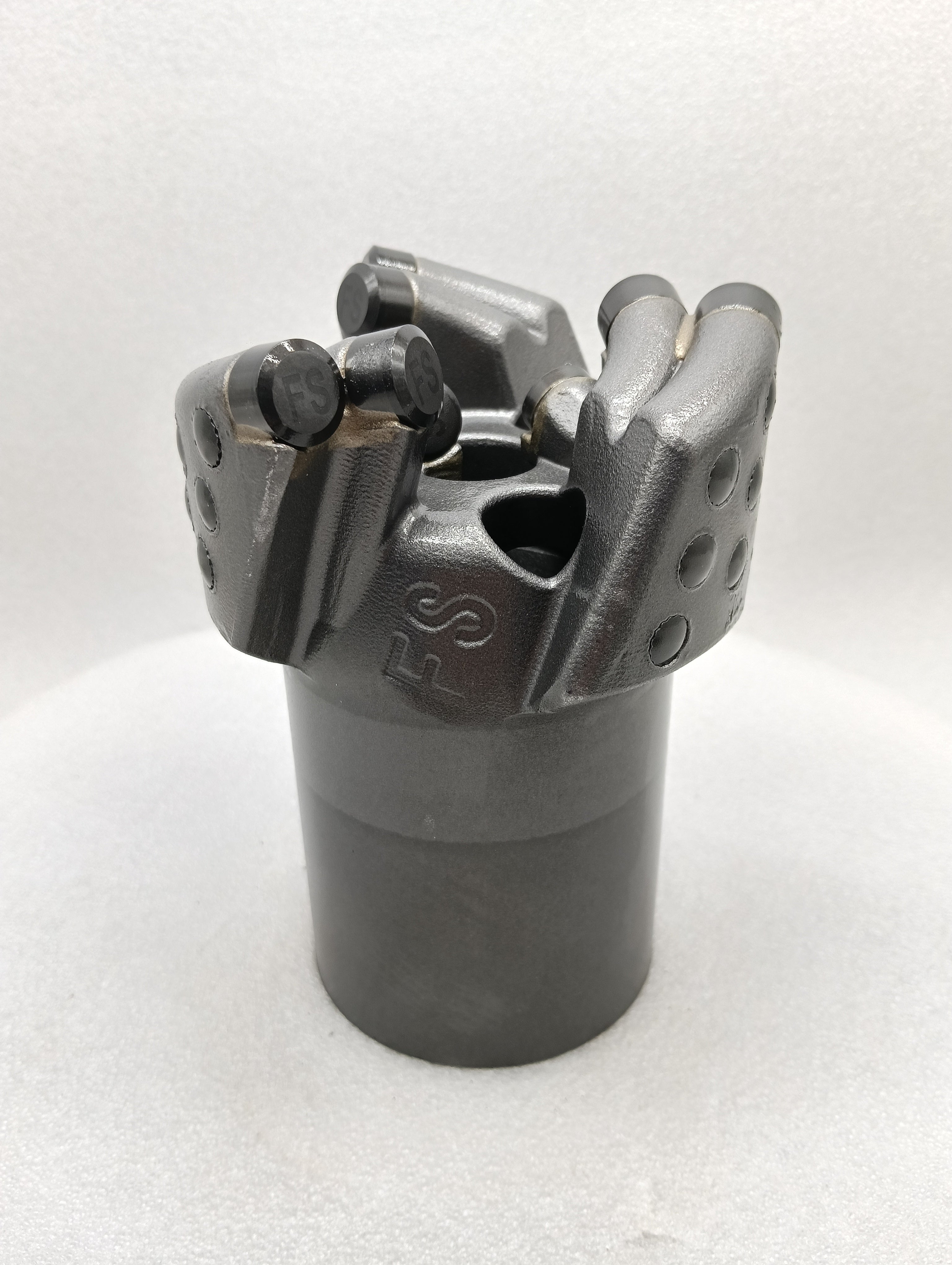

Actual Product Views
Technical Specifications
| Product type | Four-wing spiral concave coreless PDC drill bit |
|---|---|
| Cutting structure | Four spiral blades with concave center and fixed PDC cutters |
| Primary applications | Water wells, geological exploration, mining and engineering drilling |
| Recommended formations | Soft to medium formations; cutter and flushing design require project confirmation |
| Size | 95.3 mm / 3 3/4" · 114.3 mm / 4 1/2" · 149.2 mm / 5 7/8" · 165.1 mm / 6 1/2" · 200.0 mm / 7 7/8" · 215.9 mm / 8 1/2" · 244.5 mm / 9 5/8" · 250.8 mm / 9 7/8" · 311.2 mm / 12 1/4" · 323.9 mm / 12 3/4" · Custom Size |
| Connection | Male Thread · Female Thread |
| Connection | Threaded connection matched to the customer's drill string |
| Customization | Diameter, connection, cutter layout, waterways, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- The cutting structure matches the required drilling method.
- Formation and flushing details can be supplied for review.
- A customized diameter or connection is required.
Confirm before ordering
- Required diameter and thread connection
- Formation hardness, abrasiveness and fracture condition
- Rig model, drilling method, target depth and quantity
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
