5-Wing Arc Profile PDC Drill Bit for Water Well & Mining
Five-Wing Arc Profile for Stable Cutting and Smooth Boreholes5-Wing Arc Profile PDC Drill Bit Designed for water well, geological exploration and mining drilling projects that require stable cutting and smooth...
Five-Wing Arc Profile for Stable Cutting and Smooth Boreholes
Five-Wing Arc Profile for Stable Cutting and Smooth Boreholes 5-Wing Arc Profile PDC Drill Bit Designed for water well, geological exploration and mining drilling projects that require stable cutting and smooth borehole formation. The five-wing arc profile distributes cutting load across multiple blades and can be customized for different formations, connections and diameters. Key Advantages...
Design Advantage 1
Five blades distribute cutting load and provide multiple support points.
Design Advantage 2
The arc-profile cutting face maintains progressive formation contact.
Design Advantage 3
Diameter, thread, cutter layout and flushing channels can be customized.

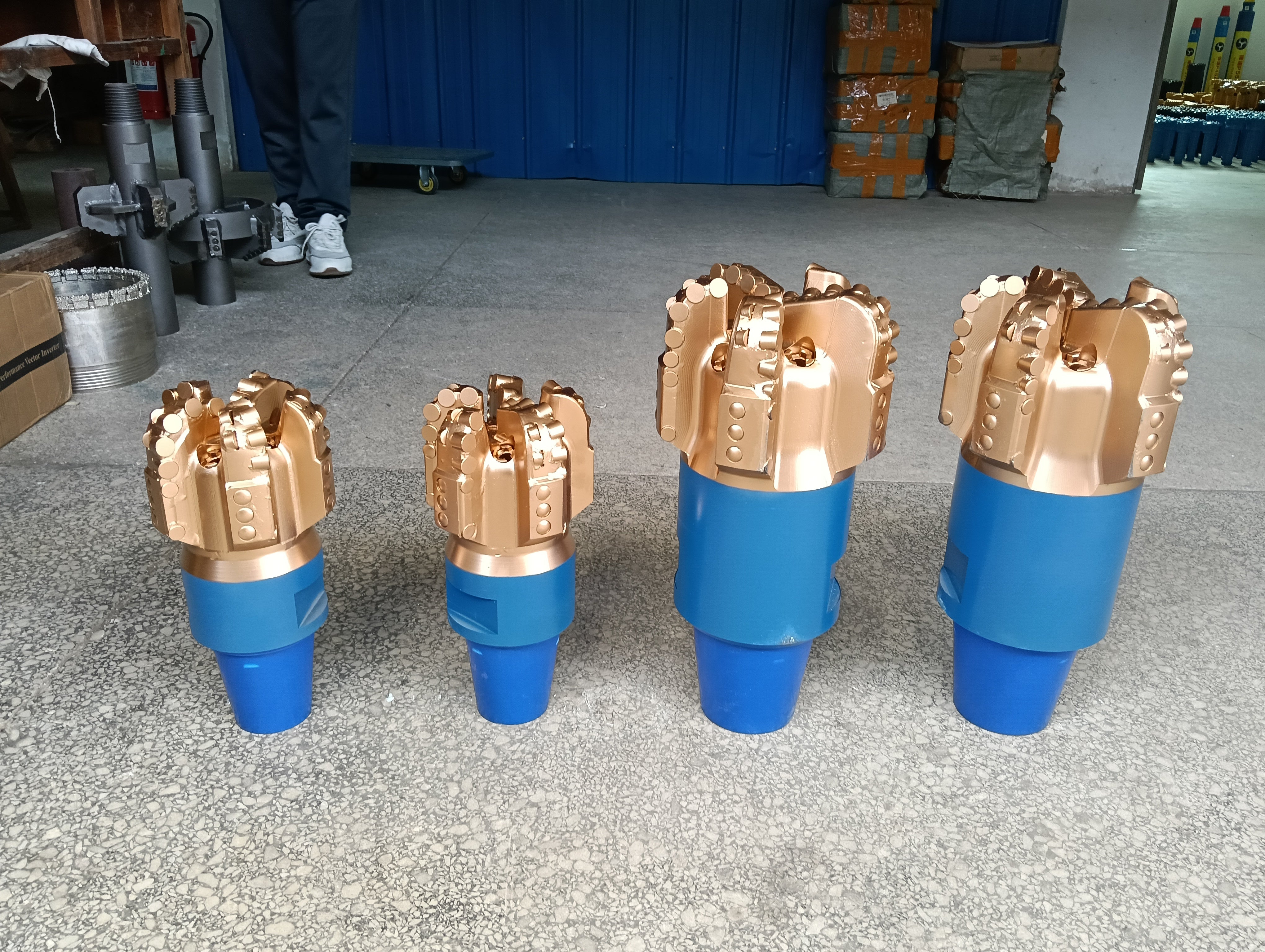

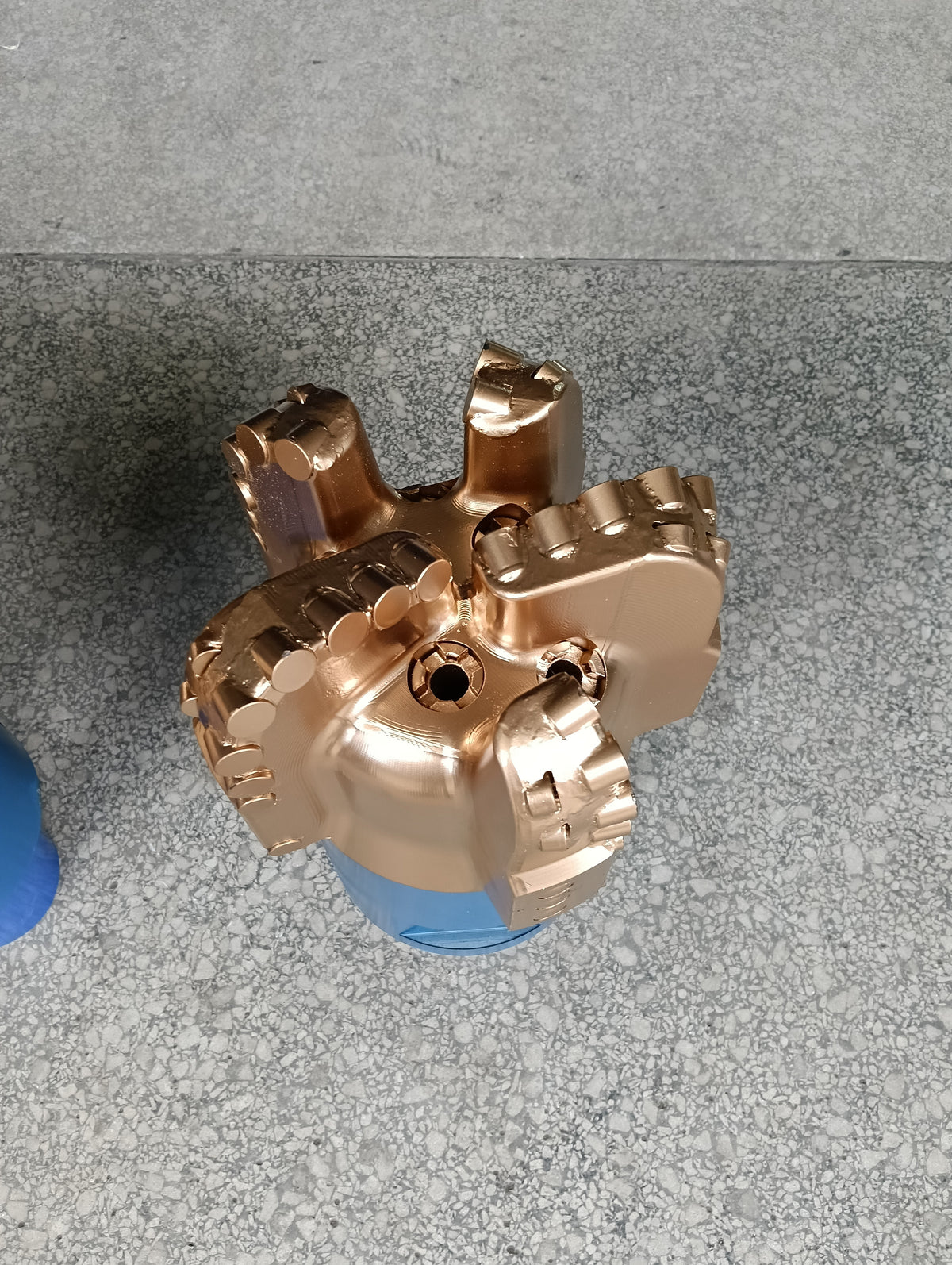

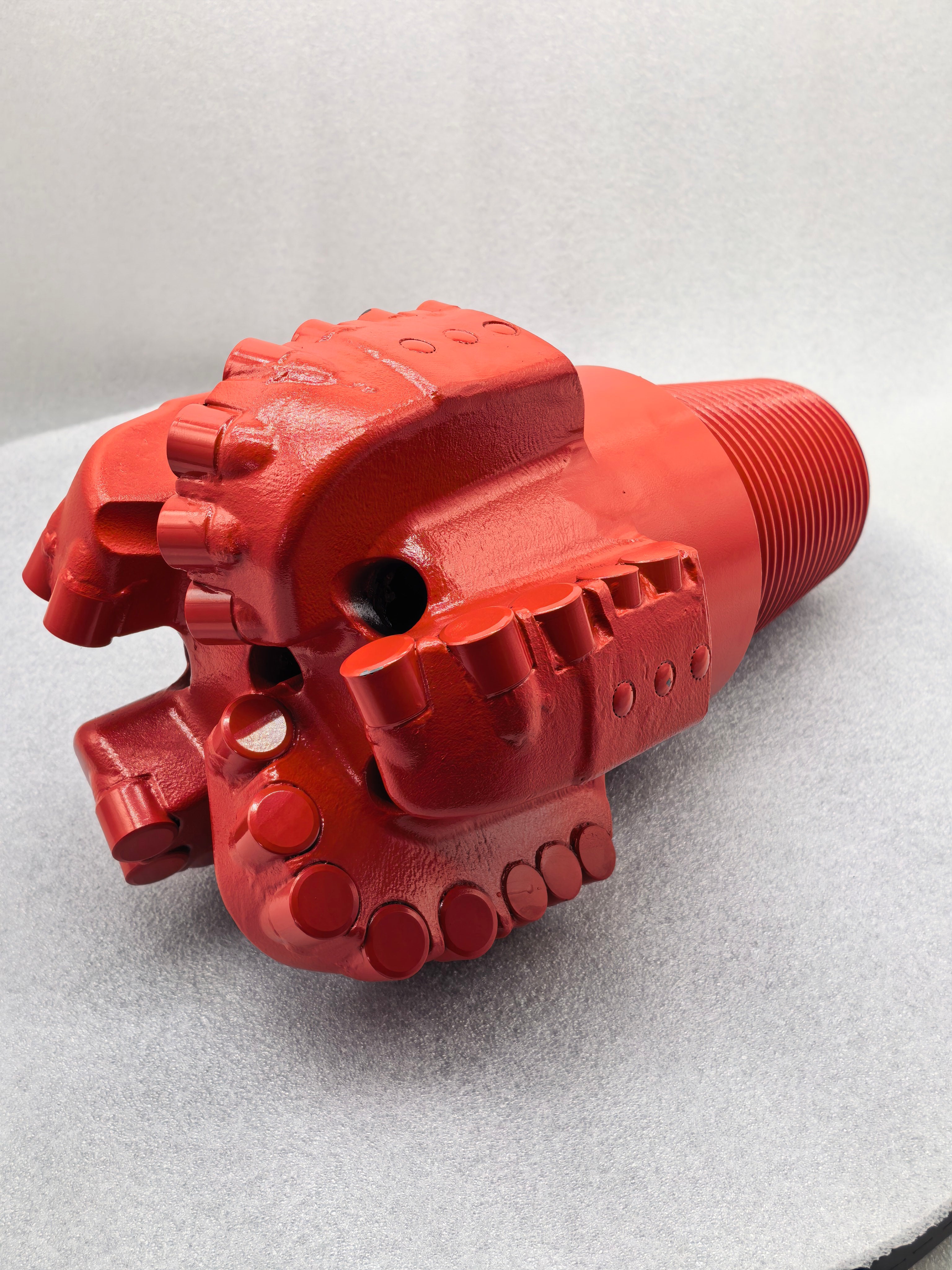

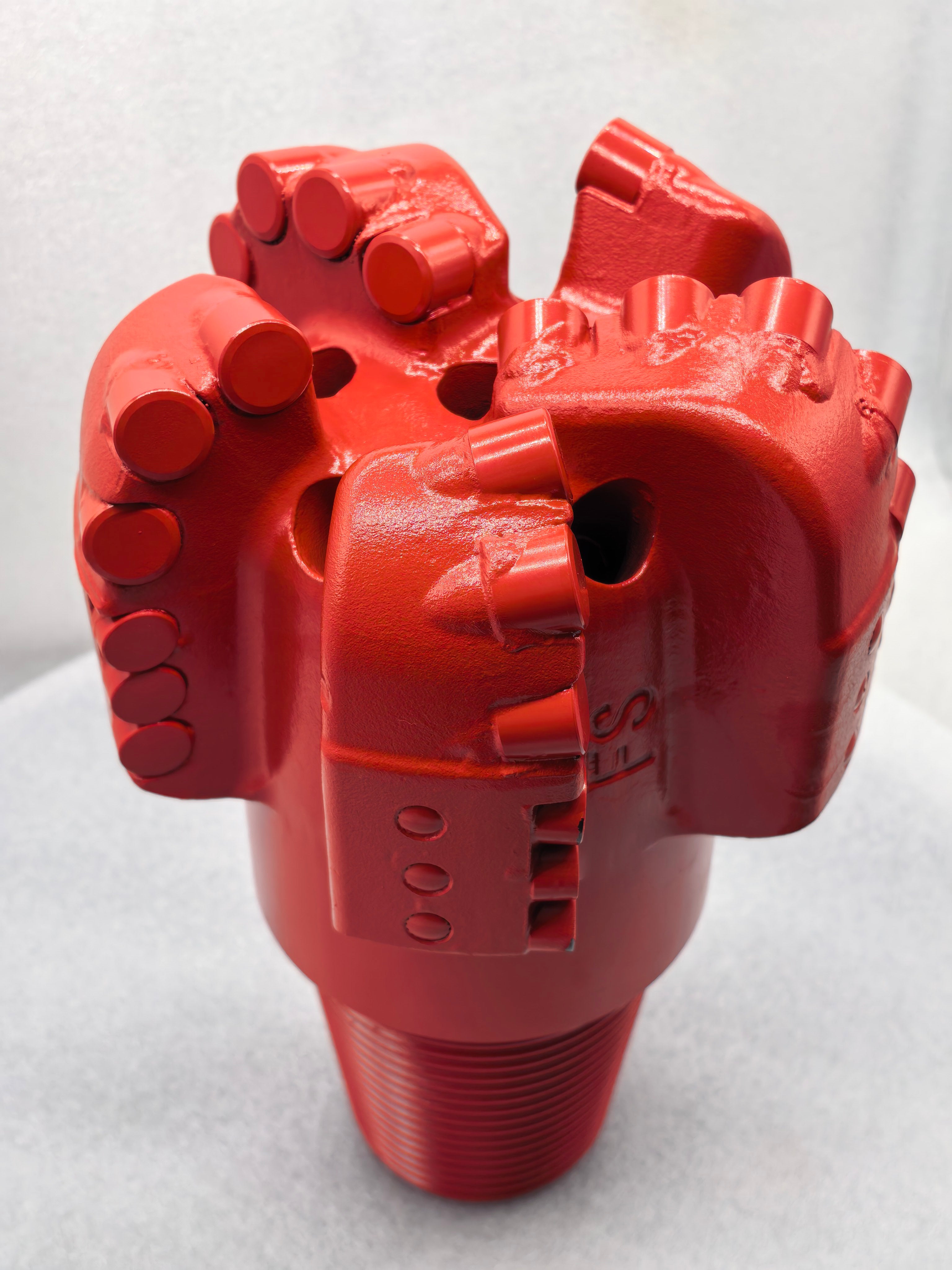

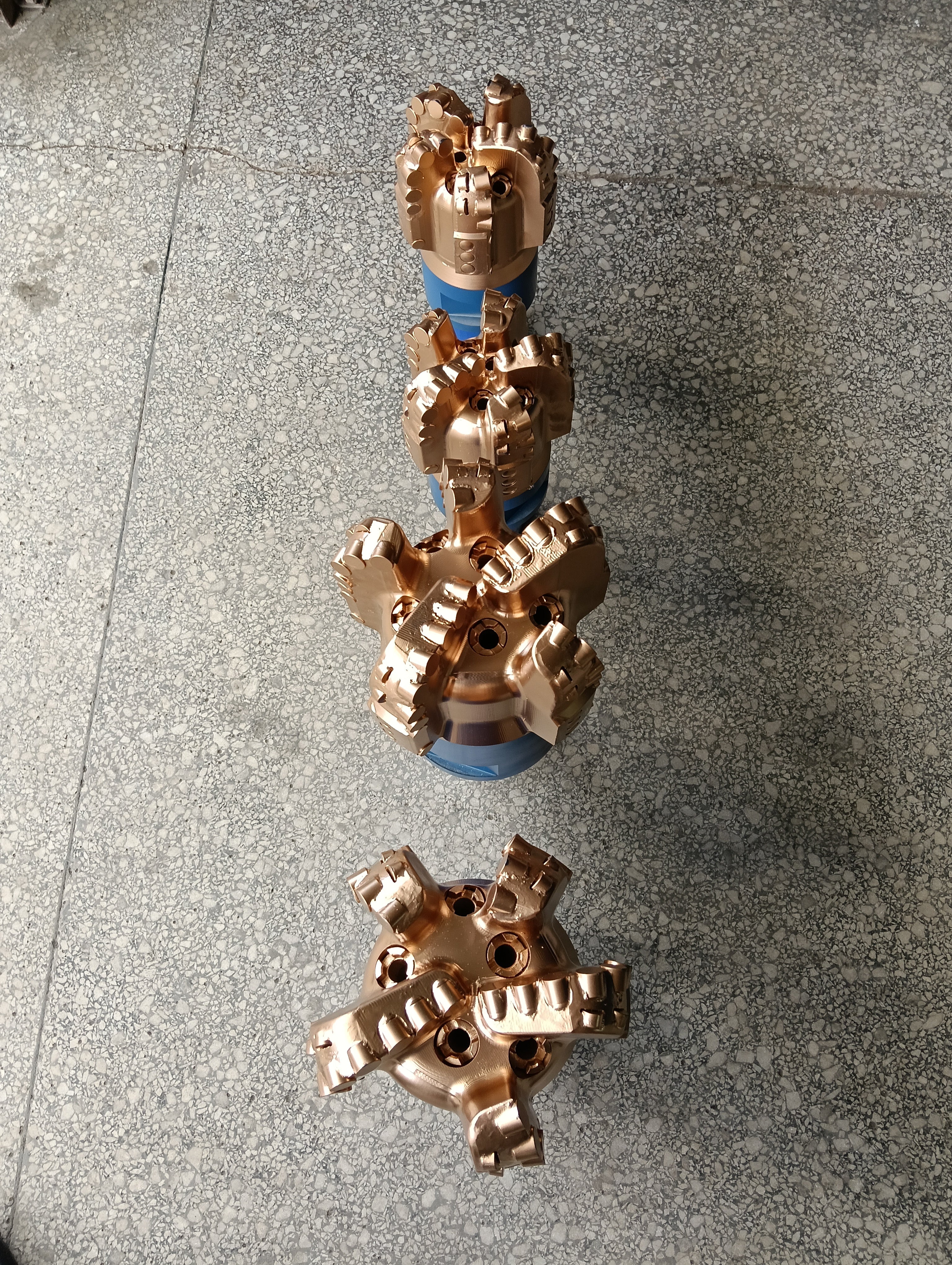

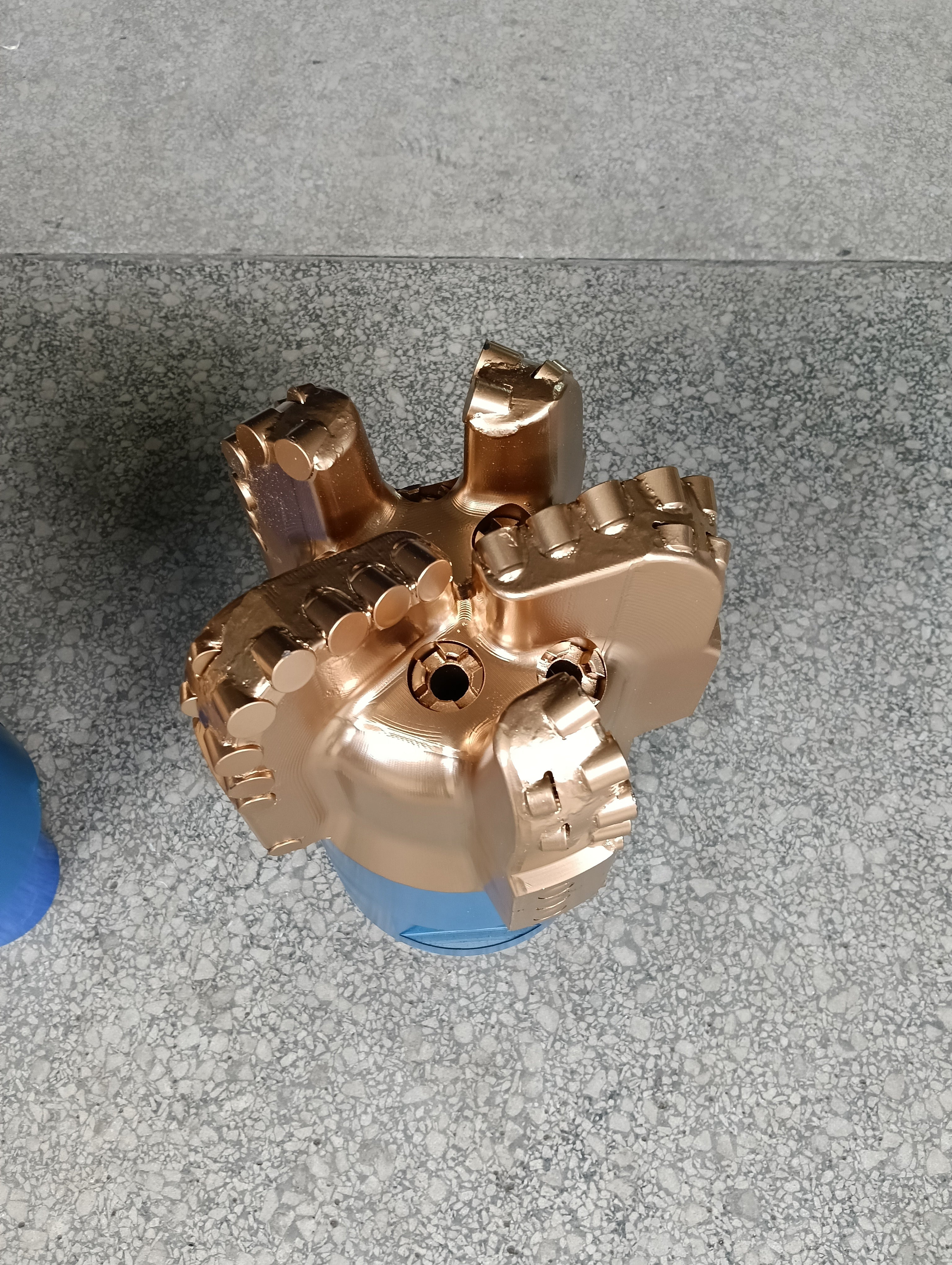

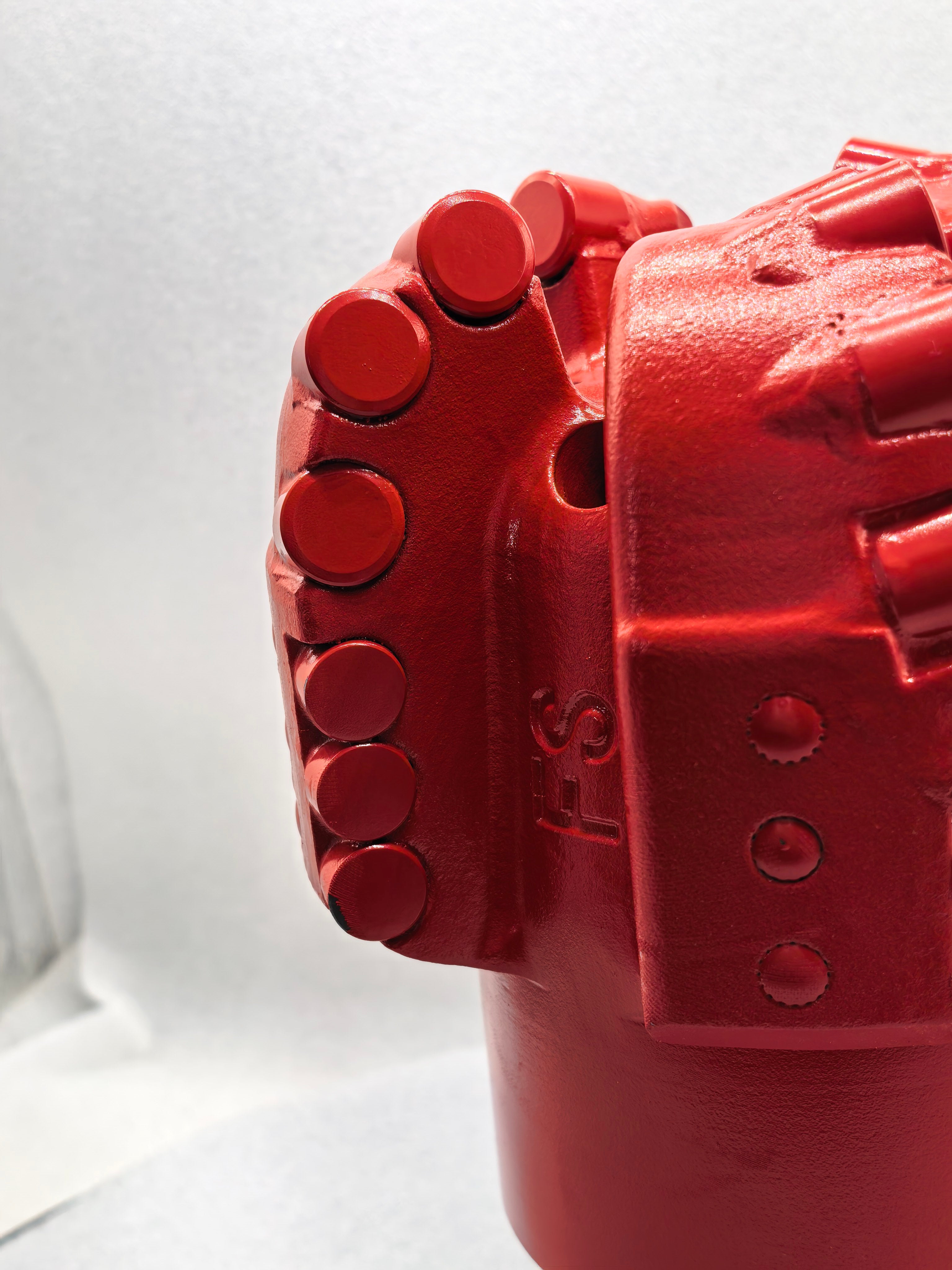

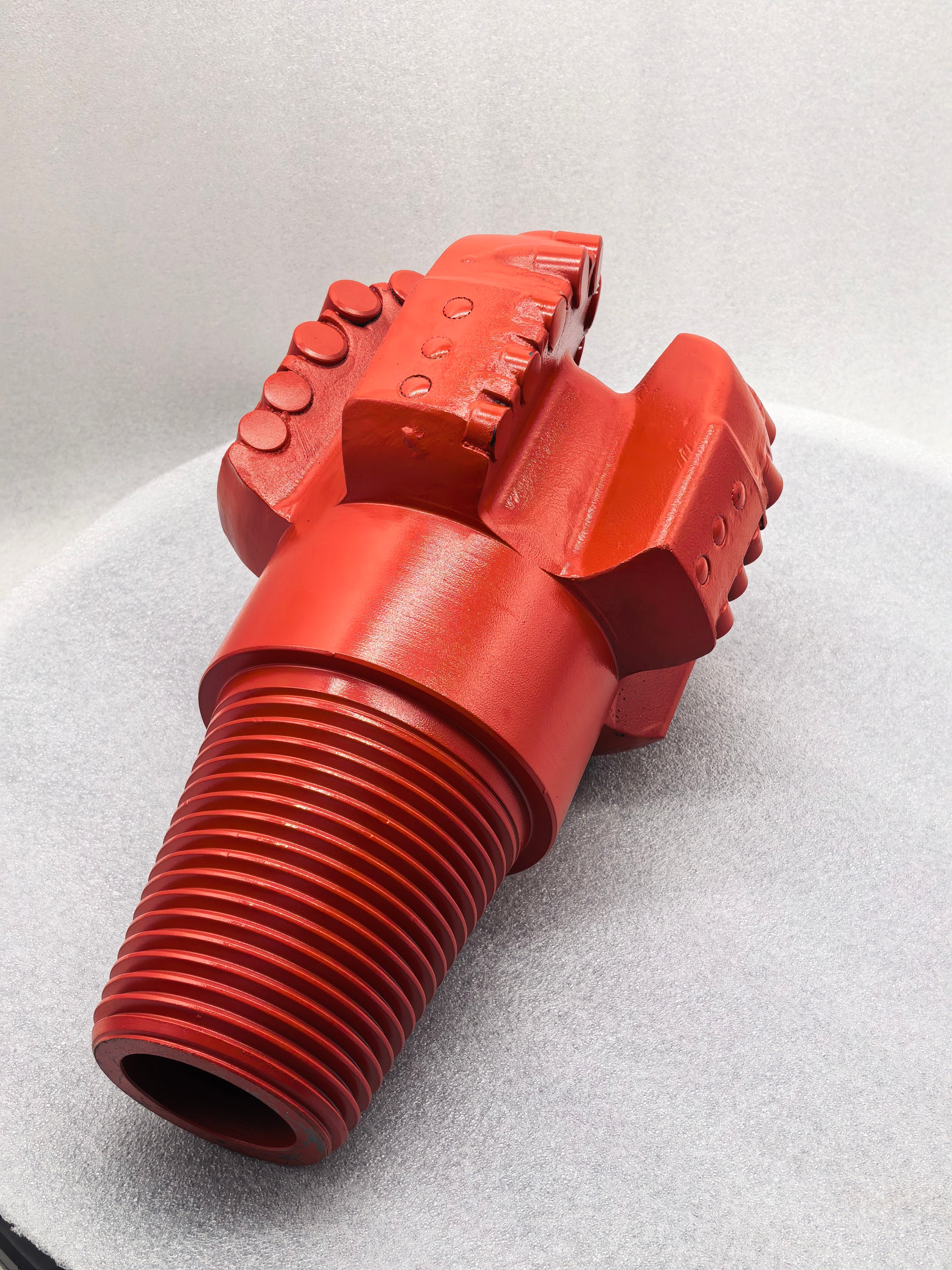

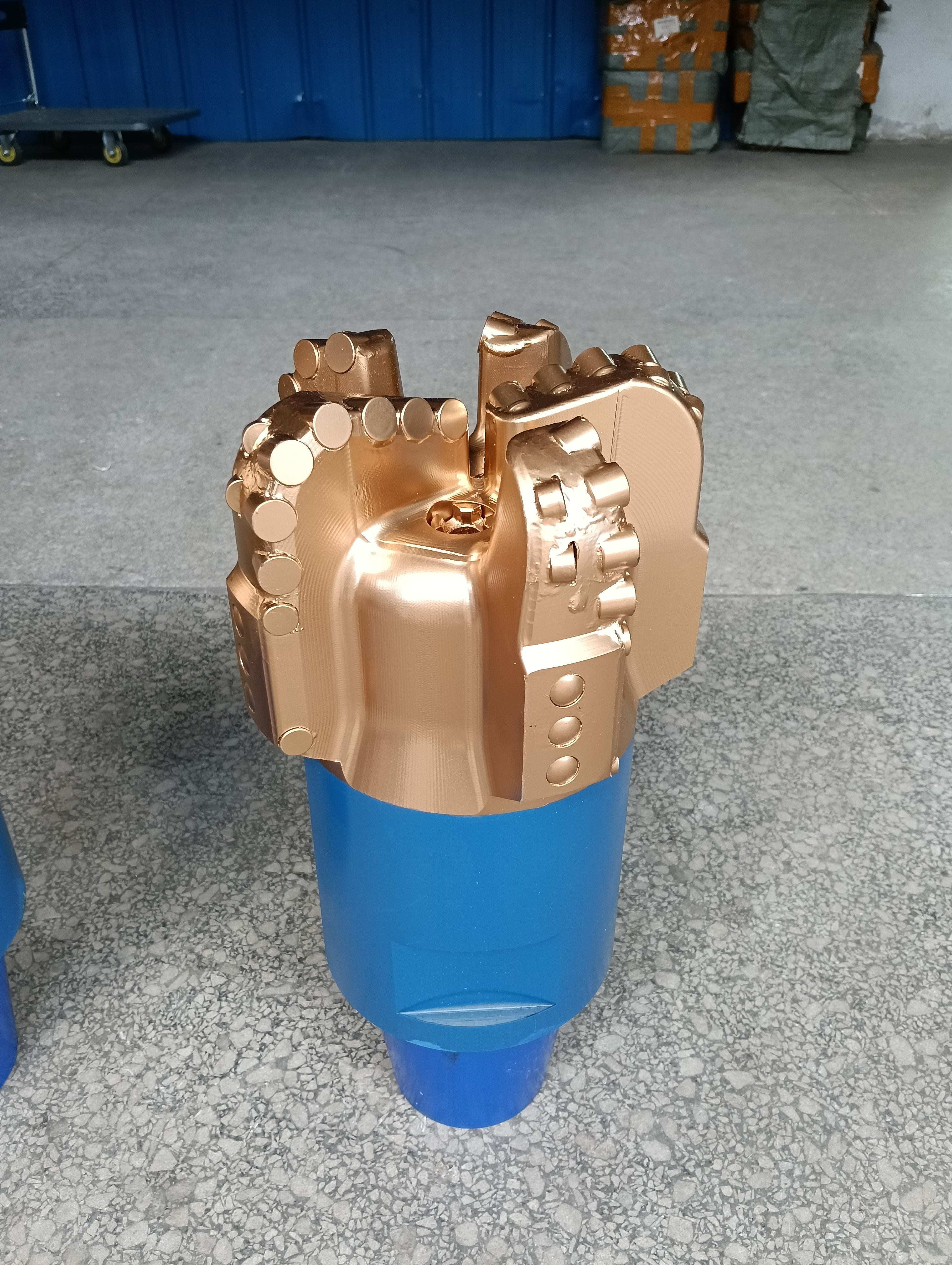

Actual Product Views
Technical Specifications
| Product type | Five-wing arc-profile coreless PDC drill bit |
|---|---|
| Cutting structure | Five-wing arc-profile fixed-cutter structure with flushing passages |
| Primary applications | Water wells, geological exploration, mining and general engineering boreholes |
| Recommended formations | Soft to medium formations; cutter grade and layout require formation review |
| Size | 98.4 mm / 3 7/8" · 104.8 mm / 4 1/8" · 120.7 mm / 4 3/4" · 149.2 mm / 5 7/8" · 165.1 mm / 6 1/2" · 215.9 mm / 8 1/2" · 244.5 mm / 9 5/8" · Custom Size |
| Connection | Threaded connection matched to the customer's drill string |
| Customization | Diameter, connection, cutter layout, waterways, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- The cutting structure matches the required drilling method.
- Formation and flushing details can be supplied for review.
- A customized diameter or connection is required.
Confirm before ordering
- Required diameter and thread connection
- Formation hardness, abrasiveness and fracture condition
- Rig model, drilling method, target depth and quantity
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
Hunan FengSu Drill Bit Co., Ltd. has 5 independent workshops and hundreds of employees. It has cooperated with China University of Geosciences and hired dozens of professors and doctors to research the ultra-wear-resistant material, with over 50 applications for patents. It's the manufacture of drill bit products which are efficient and strong enough to meet varied drilling requirements like natural gas, oil, coal exploration, geological exploration, and water wells. Certainly, our products will work perfectly under all kinds of rock environments. Adhering to the concept of unremitting technological innovation, strict quality control, and guaranteeing the reliability and professionalism in the products that we offer.
