6-Wing Arc Profile PDC Drill Bit for Stable Deep Drilling
Six-Wing Arc Profile for Stable Deep-Hole Drilling6-Wing Arc Profile PDC Drill Bit A six-wing arc-profile PDC drill bit designed for stable cutting, improved borehole quality and custom drilling projects. Key...
Six-Wing Arc Profile for Stable Deep-Hole Drilling
Six-Wing Arc Profile for Stable Deep-Hole Drilling 6-Wing Arc Profile PDC Drill Bit A six-wing arc-profile PDC drill bit designed for stable cutting, improved borehole quality and custom drilling projects. Key Advantages Six-wing structure distributes cutting load across more support points. Arc-profile cutting face supports progressive formation contact. Suitable for customized cutter layouts and thread...
Design Advantage 1
Six blades provide additional support points and more even cutting-load distribution.
Design Advantage 2
The curved crown supports progressive formation contact and controlled borehole formation.
Design Advantage 3
Batch-production capability with customizable diameter, thread and cutter layout.

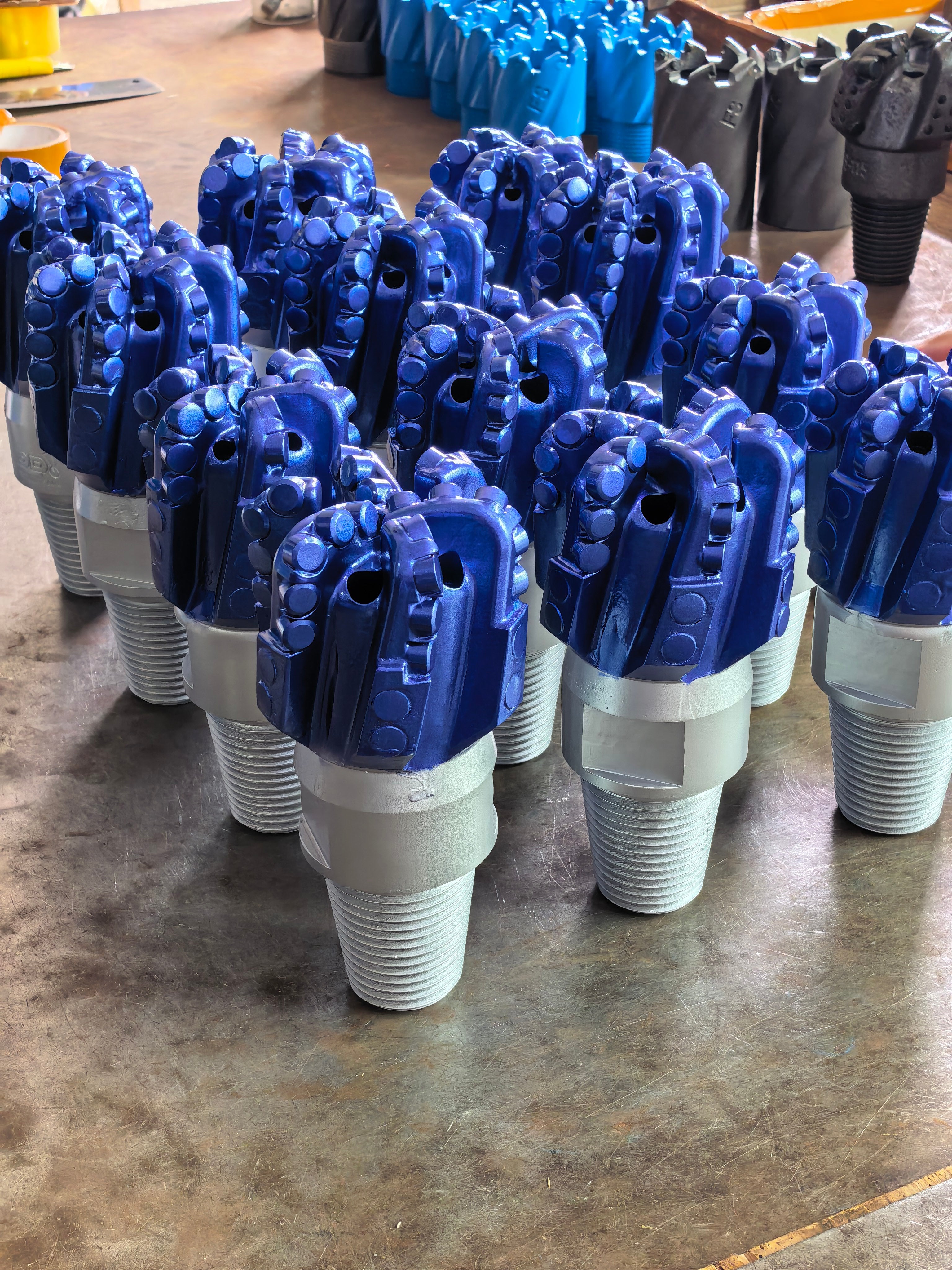

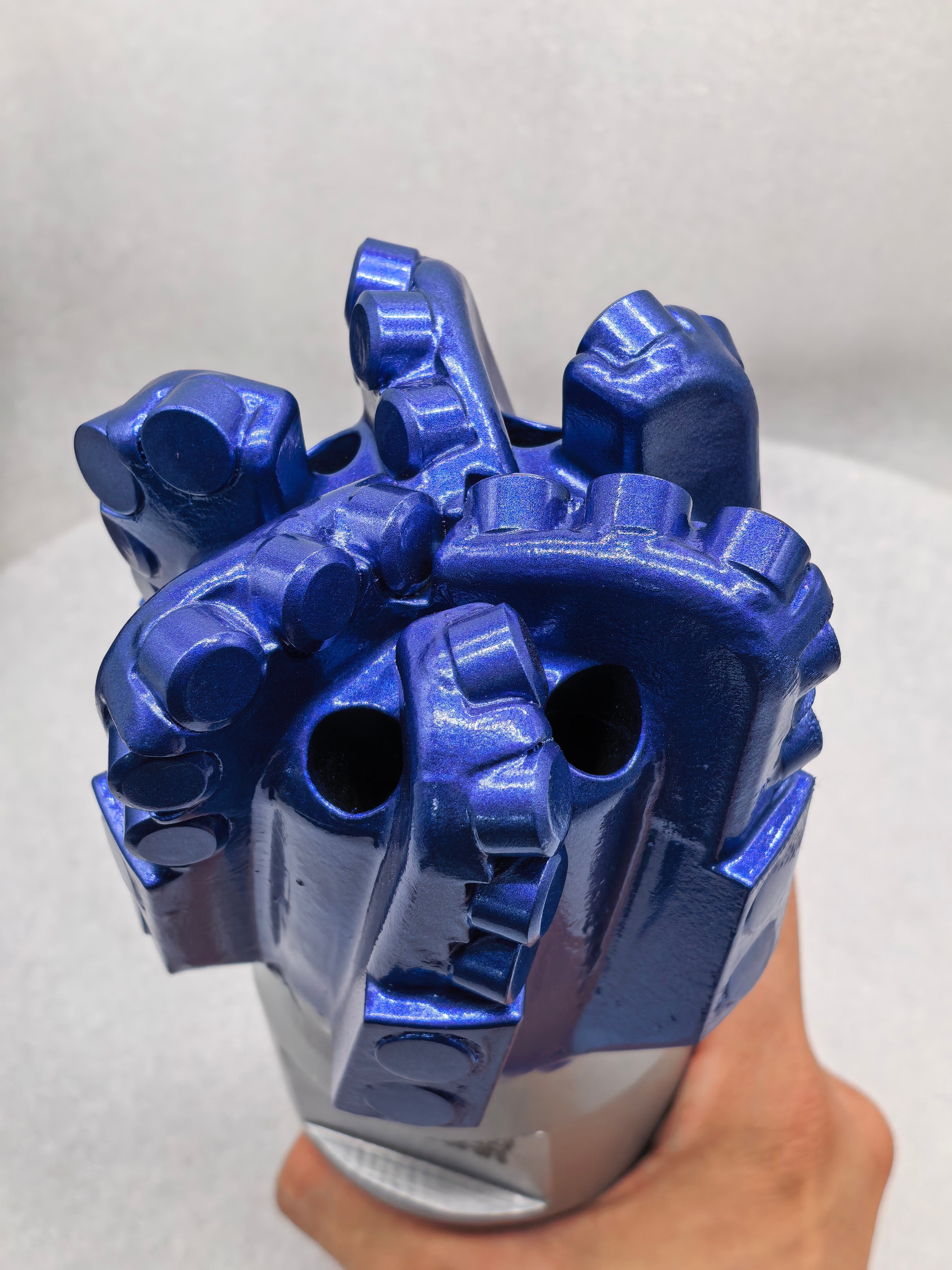

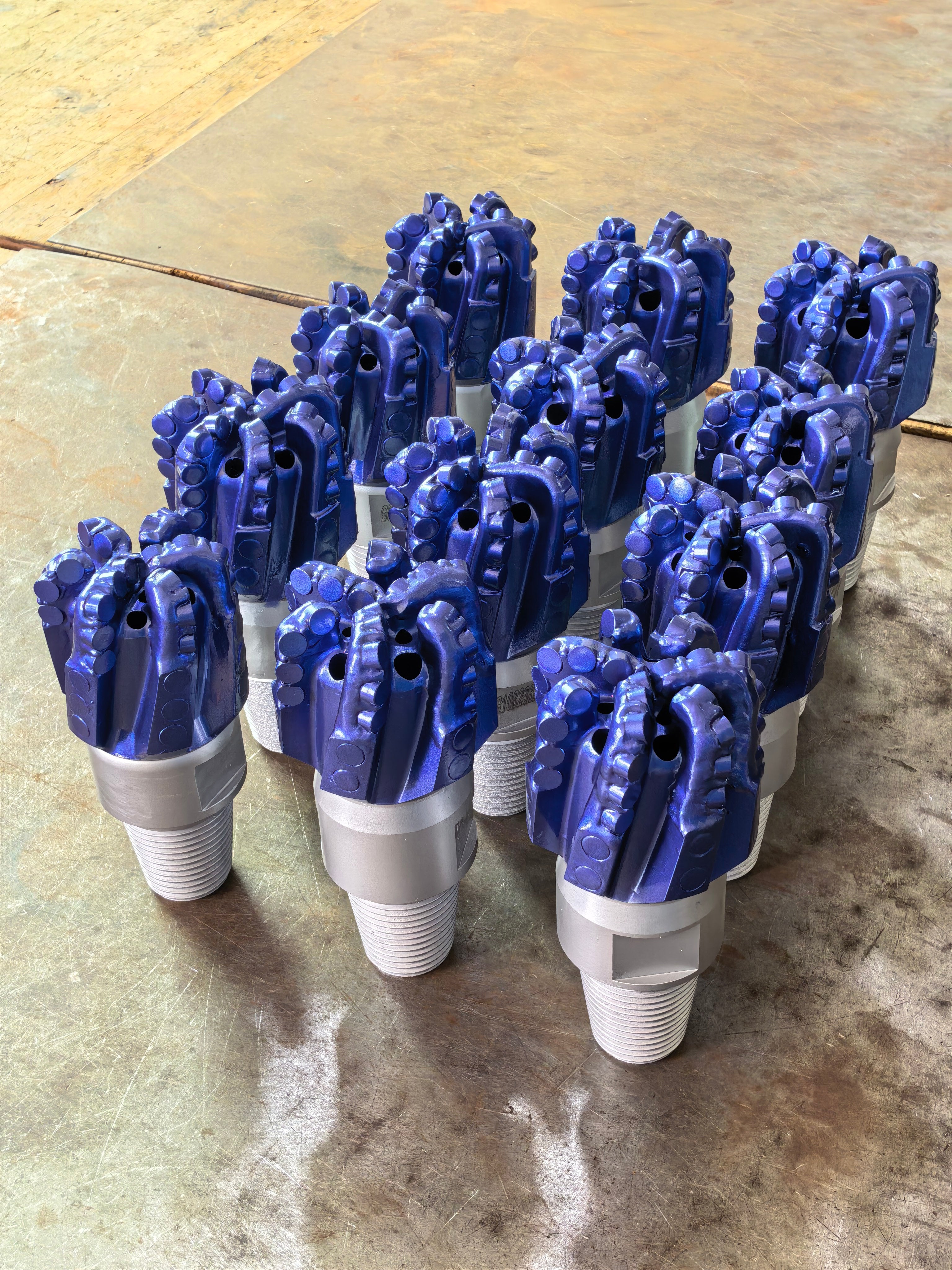

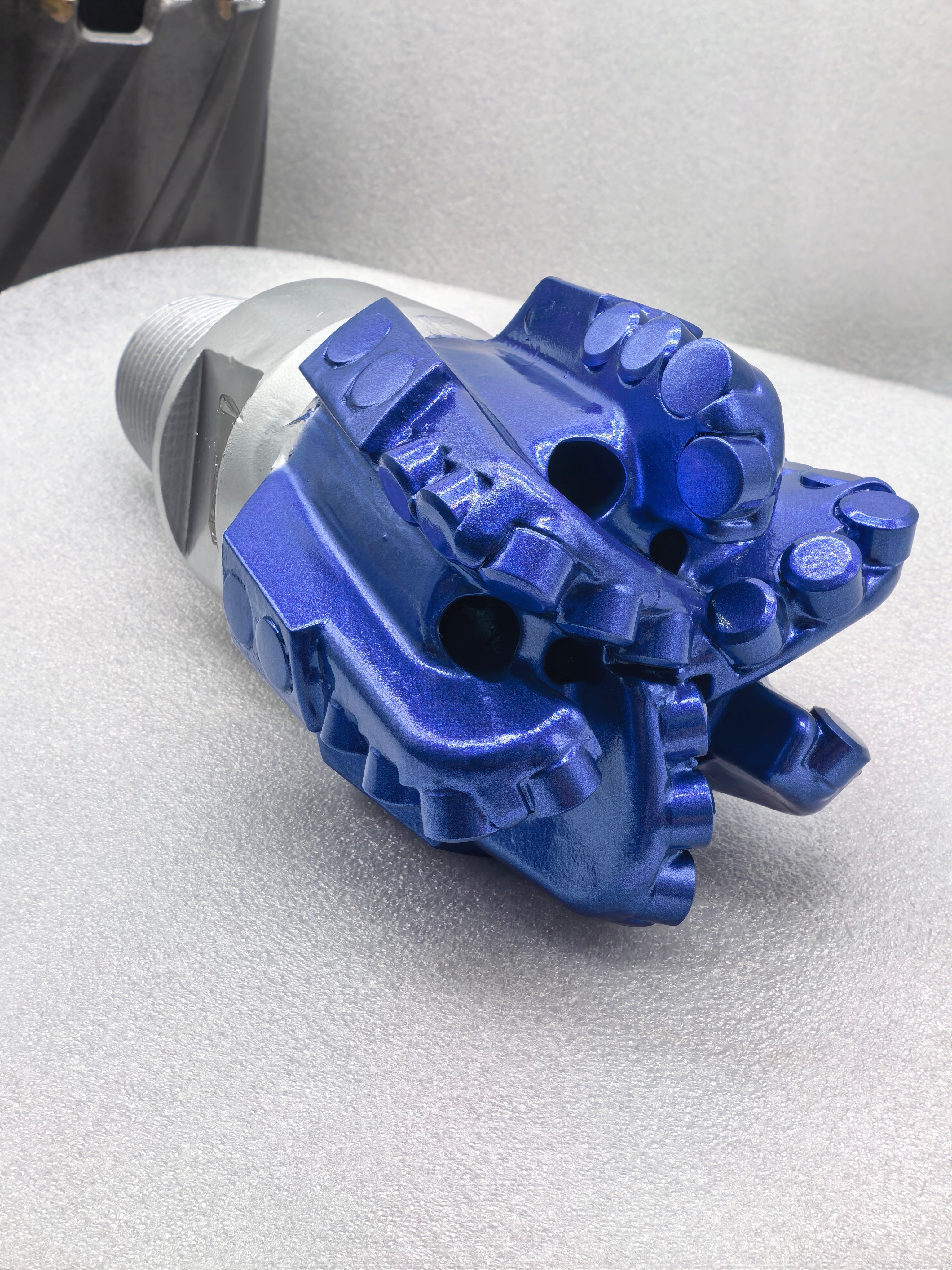

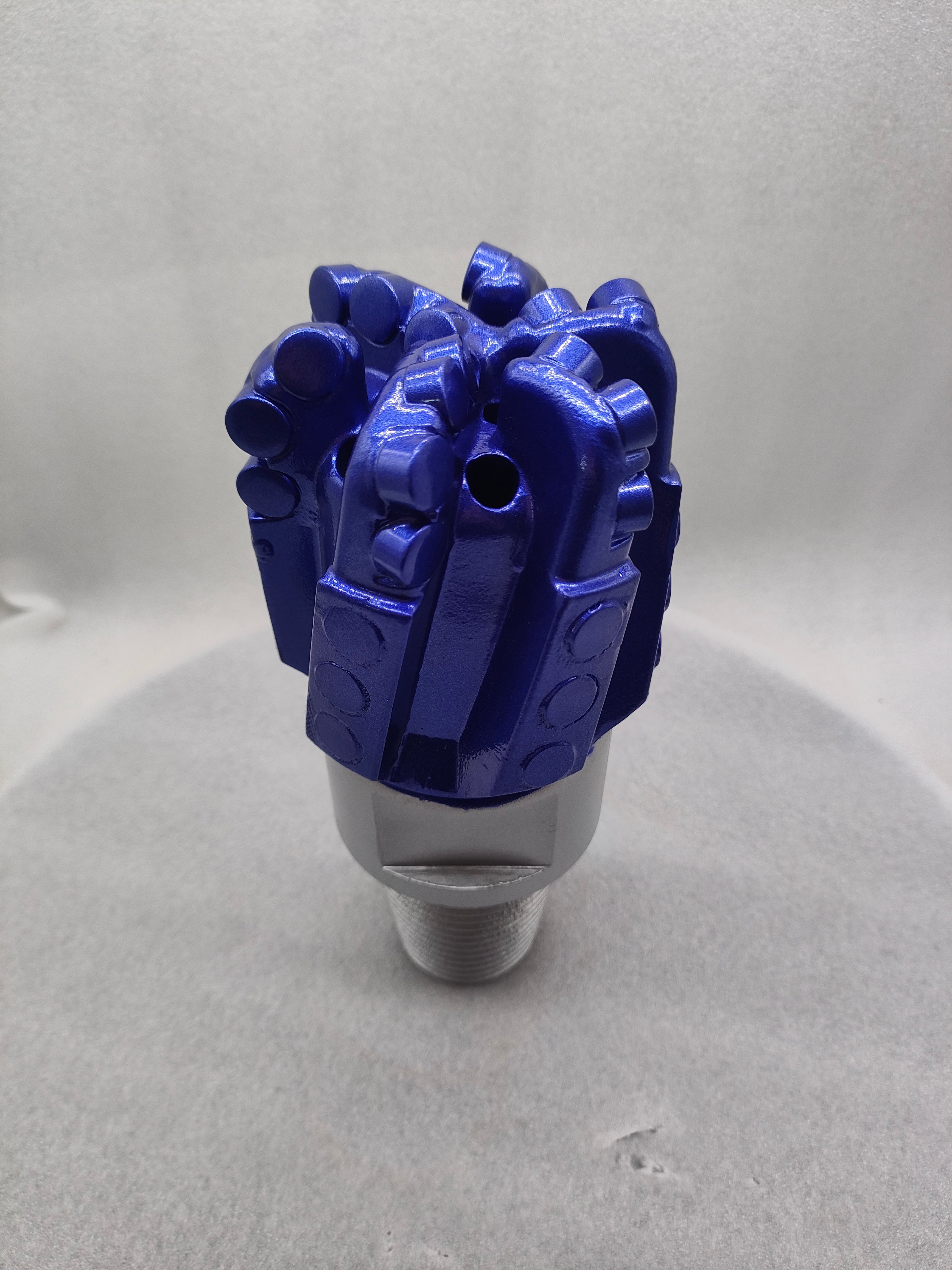

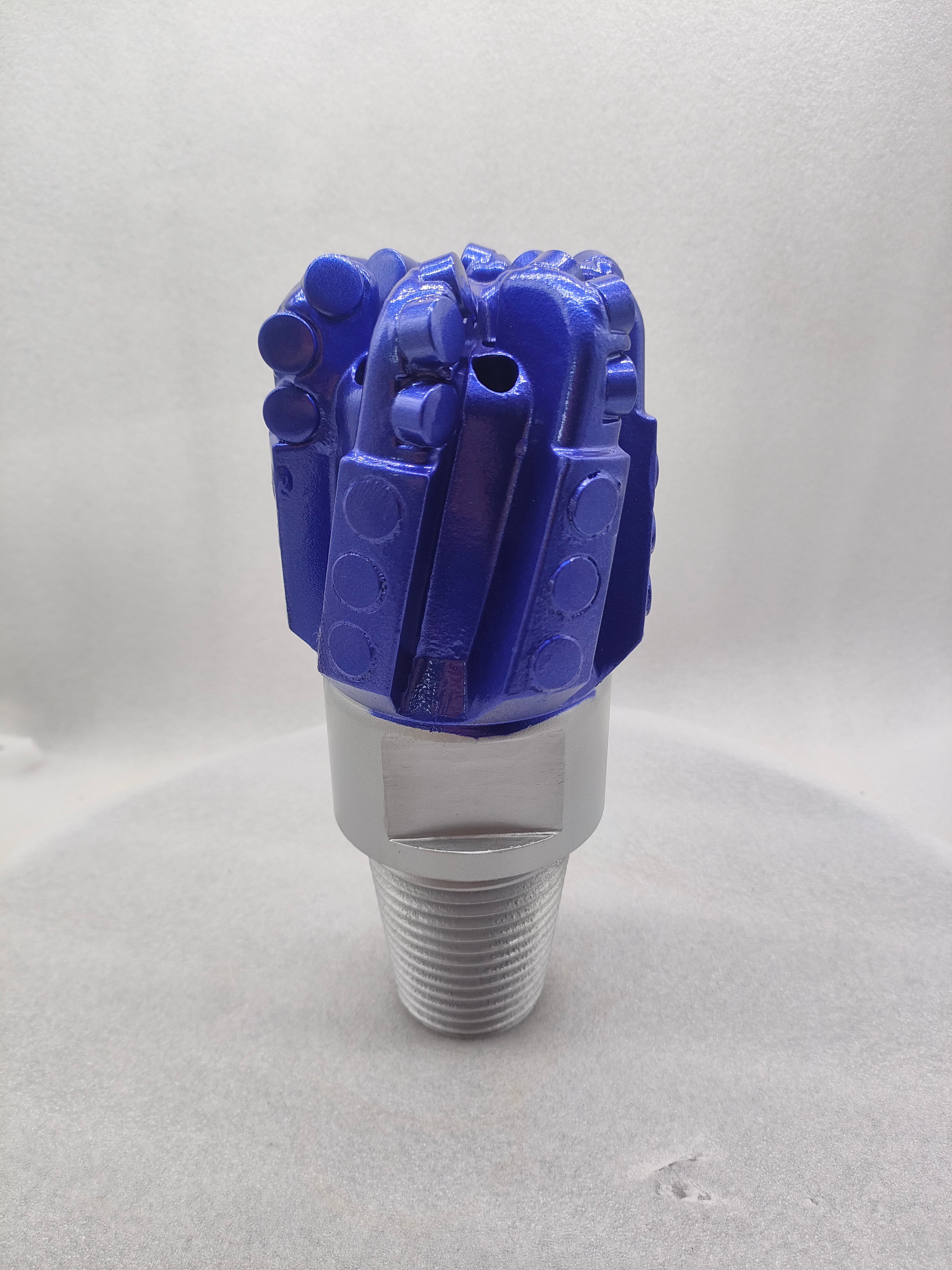

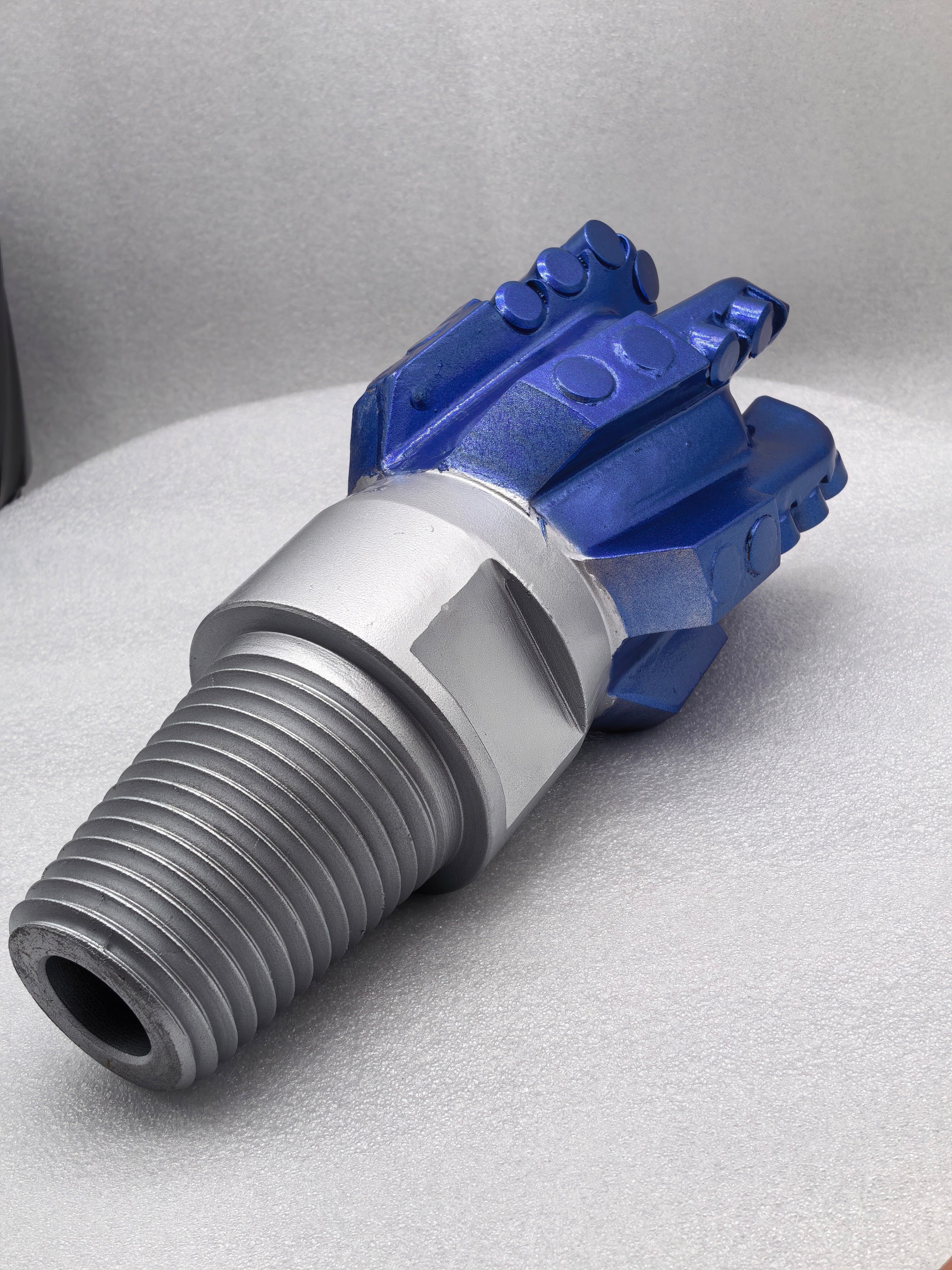

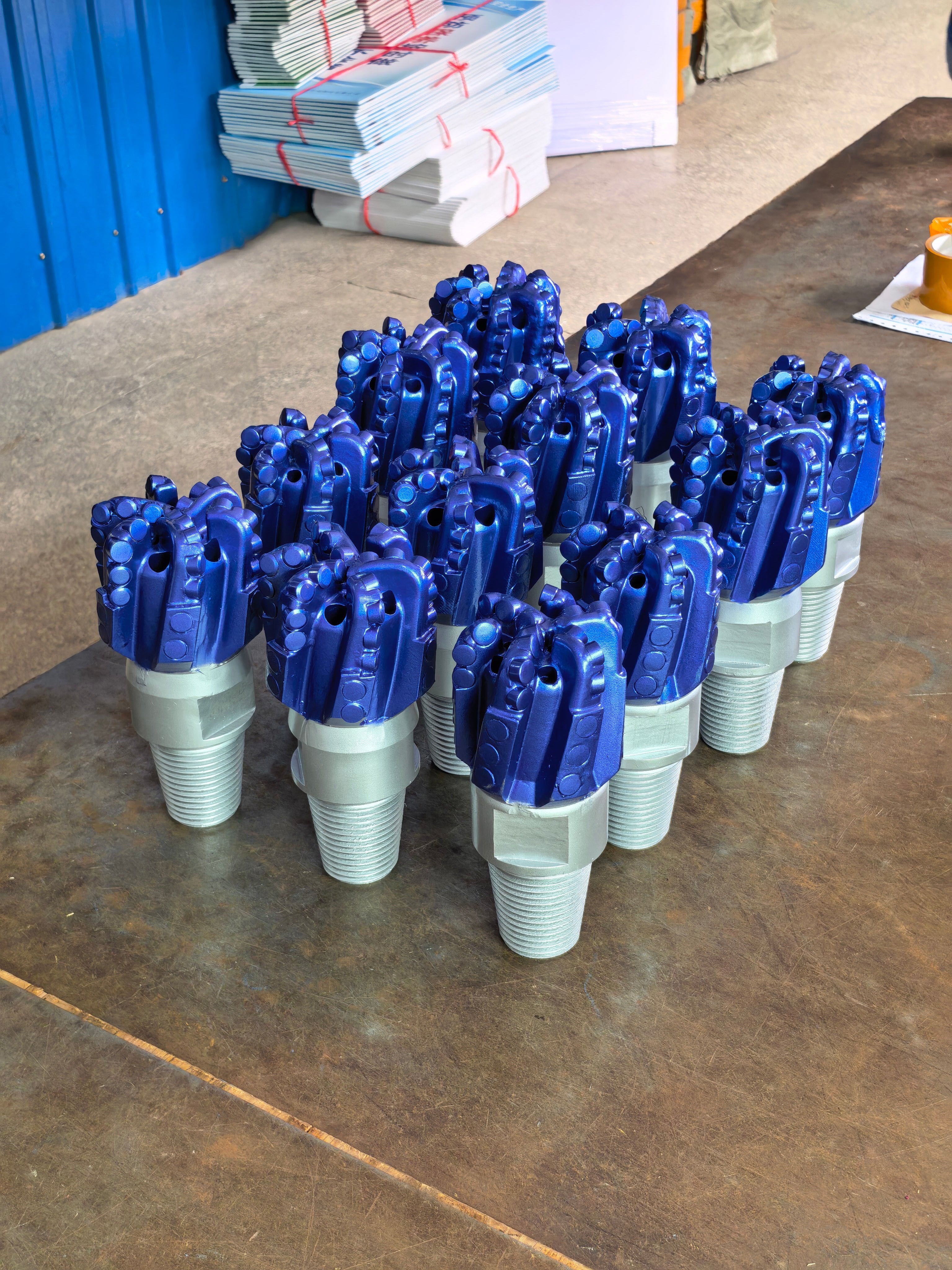

Actual Product Views
Technical Specifications
| Product type | Six-wing arc-profile coreless PDC drill bit |
|---|---|
| Cutting structure | Six-wing arc-profile fixed-cutter structure with flushing passages |
| Primary applications | Water wells, mining, geological drilling and stable deep-hole projects |
| Recommended formations | Soft to medium formations; abrasive or fractured layers require technical review |
| Size | 114.3 mm / 4 1/2" · 120.7 mm / 4 3/4" · 149.2 mm / 5 7/8" · 165.1 mm / 6 1/2" · 200.0 mm / 7 7/8" · 215.9 mm / 8 1/2" · 244.5 mm / 9 5/8" · Custom Size |
| Connection | Threaded connection matched to the customer's drill string |
| Customization | Diameter, connection, cutter layout, waterways, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- The cutting structure matches the required drilling method.
- Formation and flushing details can be supplied for review.
- A customized diameter or connection is required.
Confirm before ordering
- Required diameter and thread connection
- Formation hardness, abrasiveness and fracture condition
- Rig model, drilling method, target depth and quantity
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
Hunan FengSu Drill Bit Co., Ltd. has 5 independent workshops and hundreds of employees. It has cooperated with China University of Geosciences and hired dozens of professors and doctors to research the ultra-wear-resistant material, with over 50 applications for patents. It's the manufacture of drill bit products which are efficient and strong enough to meet varied drilling requirements like natural gas, oil, coal exploration, geological exploration, and water wells. Certainly, our products will work perfectly under all kinds of rock environments. Adhering to the concept of unremitting technological innovation, strict quality control, and guaranteeing the reliability and professionalism in the products that we offer.
