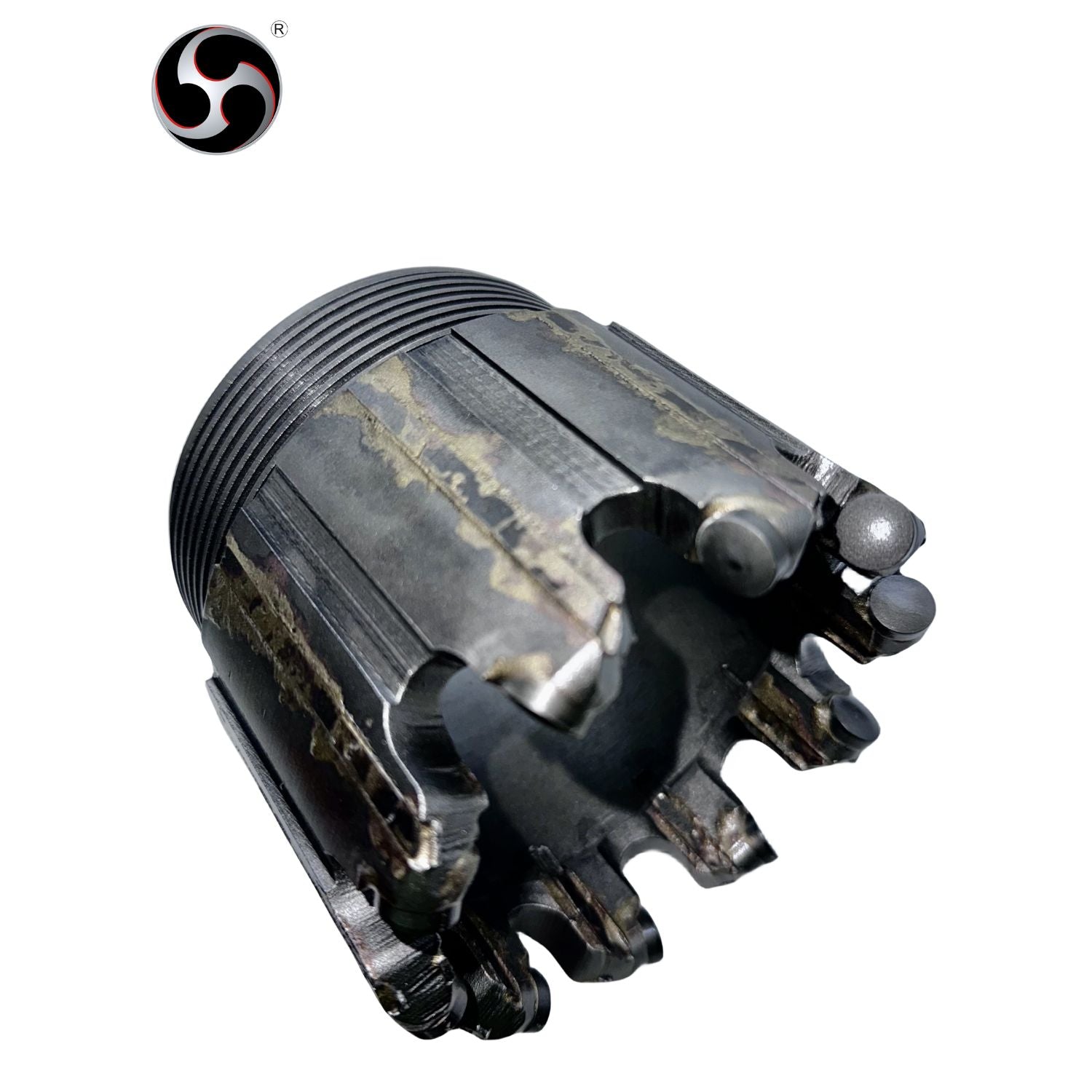

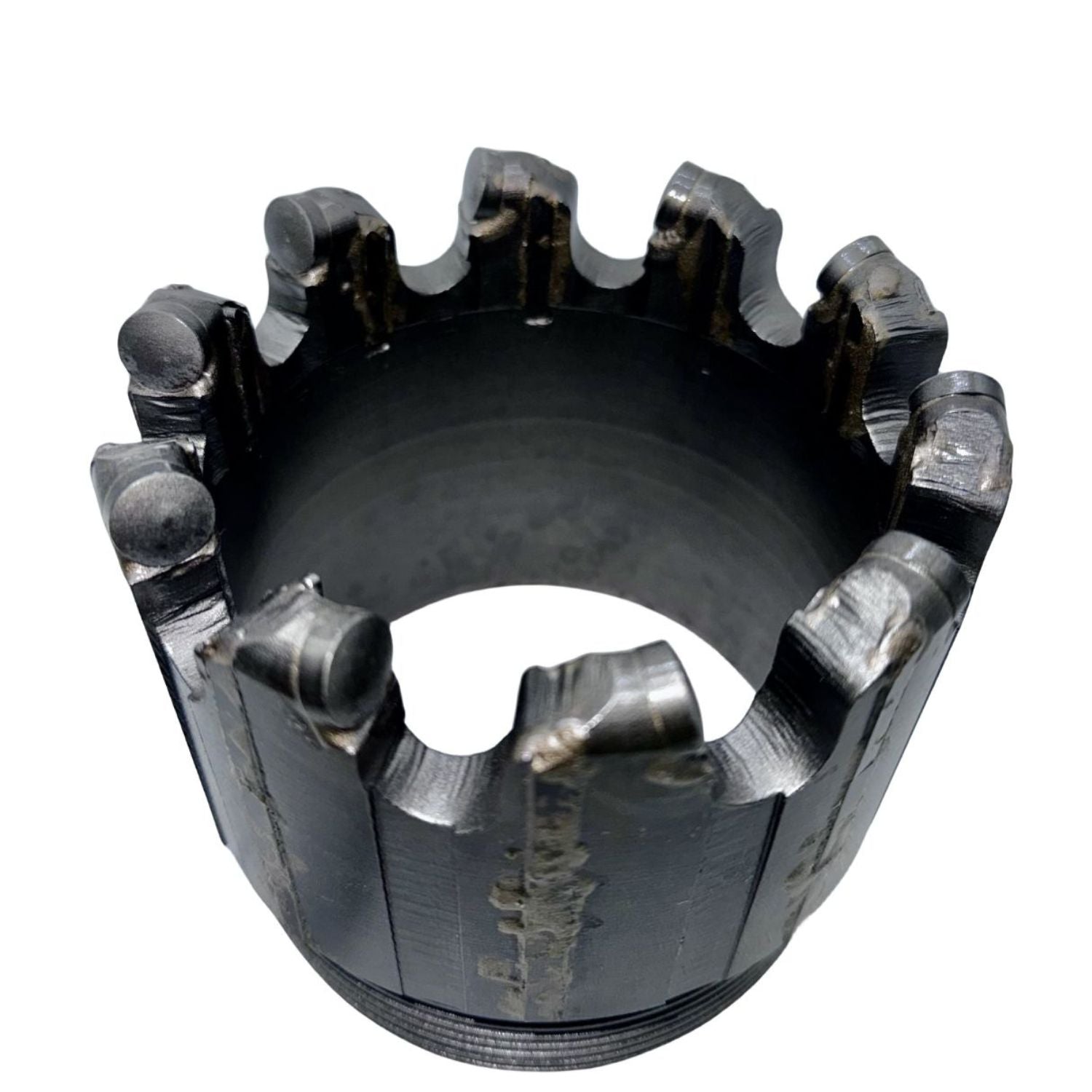

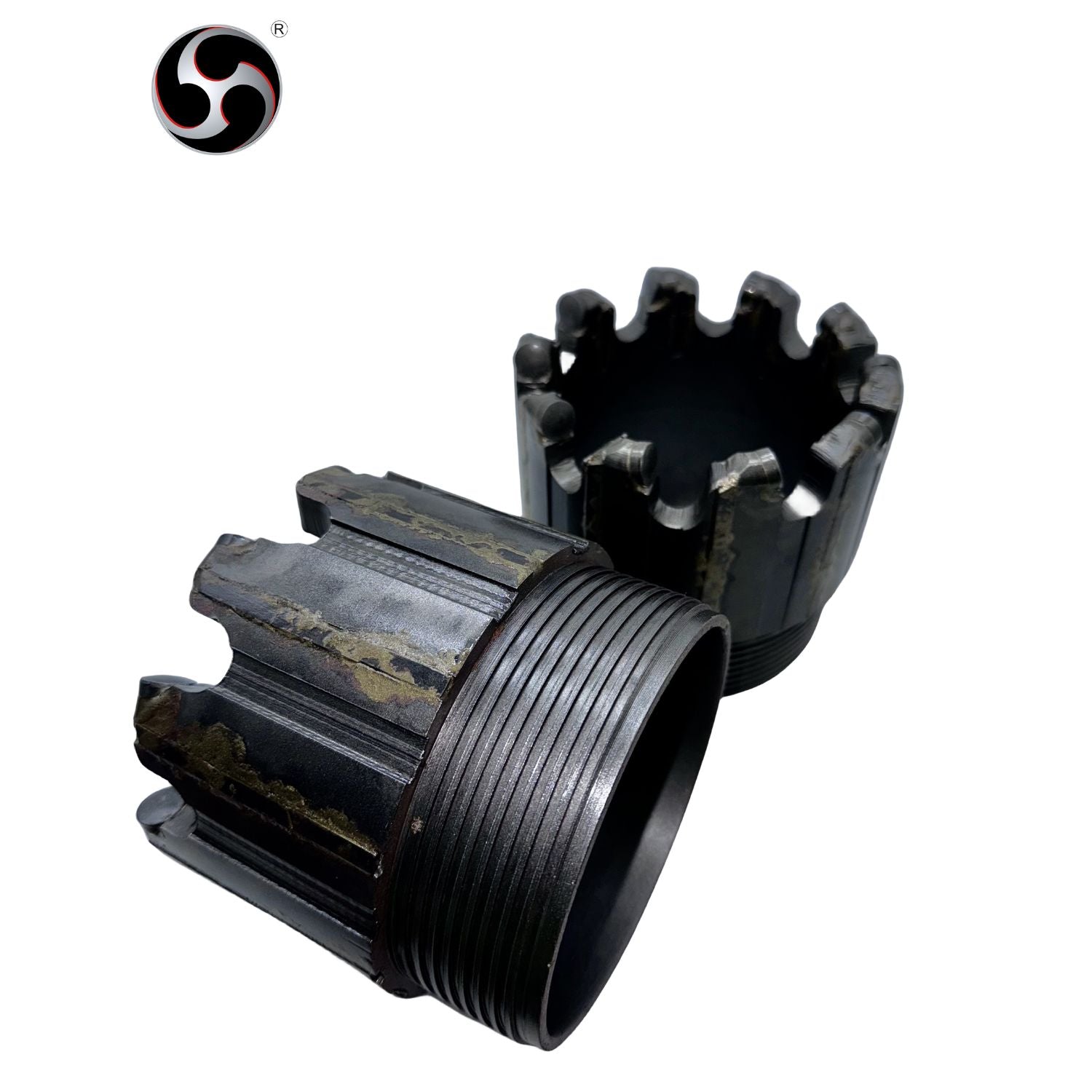

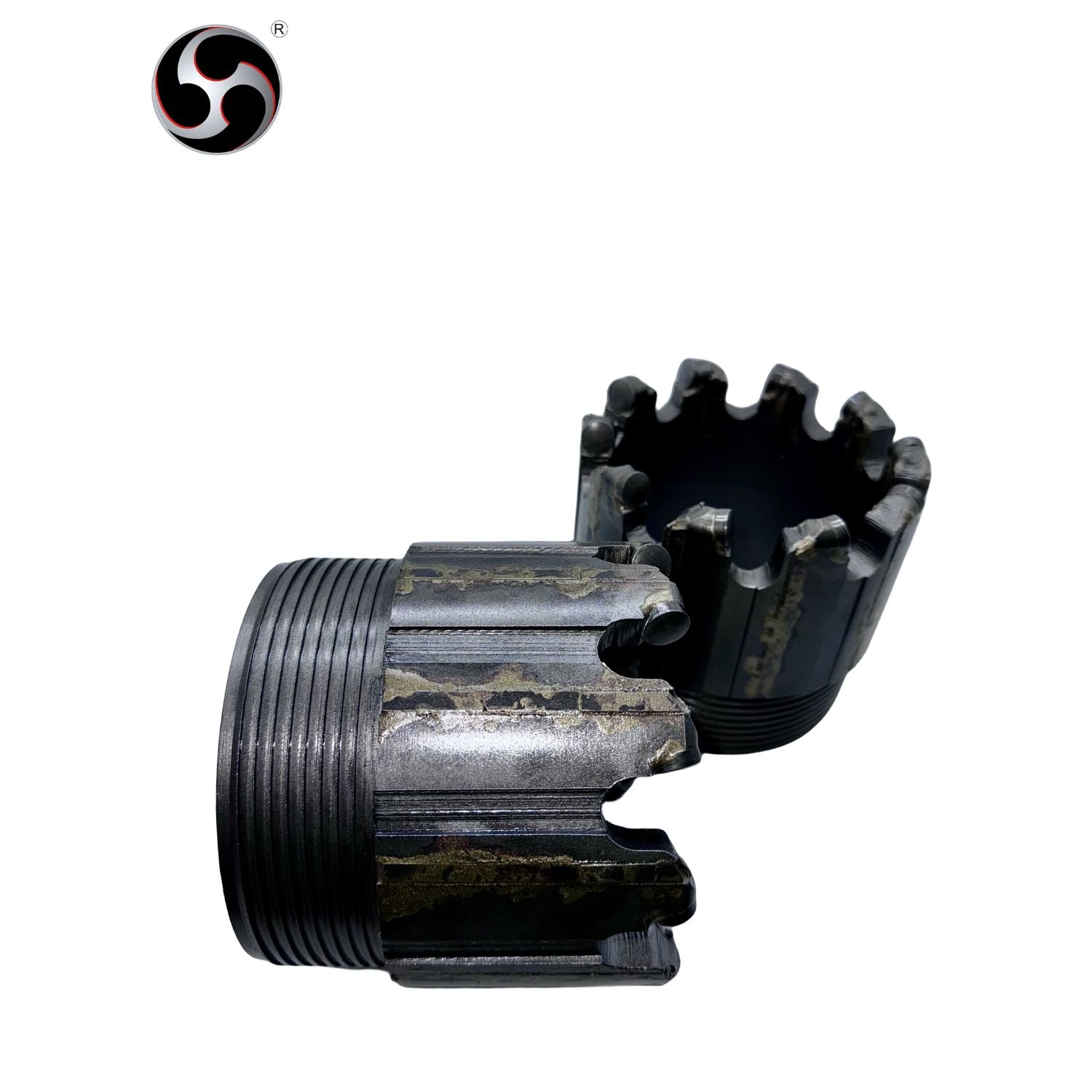

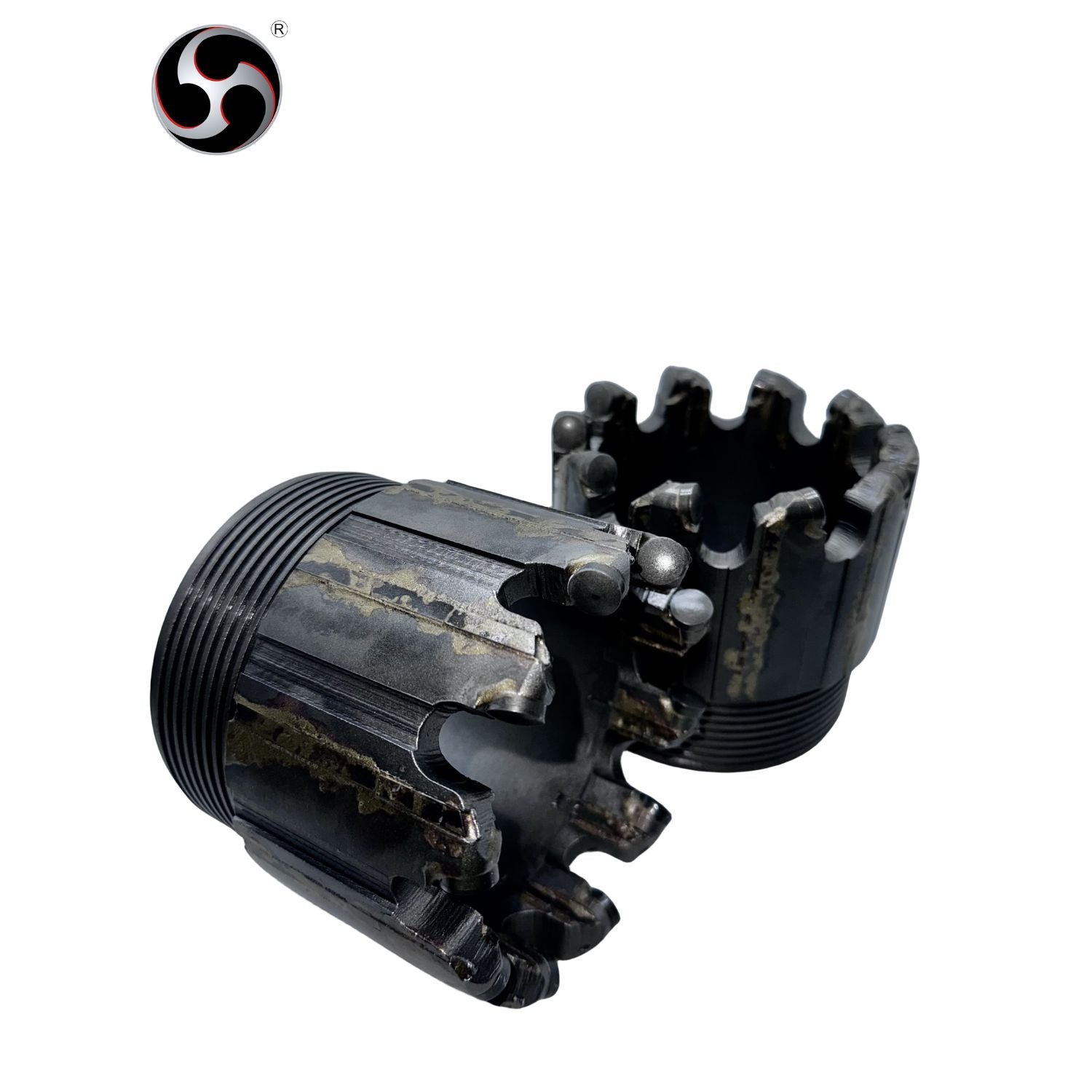

Exploration Bits Single Rib Double Rib PDC Core Drill Drilling Bit for Mining Coal with enhanced and thickened ball pieces
Suitable for level 8-9 hard rock layers, such as basalt or diabase, PDC material enhances the overall strength and durability of the drill bit.
Our Craftsmanship
| Model | ** |
|---|---|
| Brand | FENGSU |
| Type | Drill bit |
| Material | Aolly |
| Size Range | ** |
| Thread Type | ** |
| Recommended Formation | ** |
| Origin | HUNAN，China |
| Packaging | Carton or Wooden Box |
Comprehensive Rock Drilling Reference Table
| Stratum Classification/Name | Representing Rock Strata | Theoretical Drilling Speed/Recommended Pull-out Length | Recommended Drill Bits |
|---|---|---|---|
| Level 1 (Loose Soil) | Secondary loess, secondary Hongshi, soft sand without gravel and angular gravel, diatomaceous earth | 15M/h, 15M/P | Alloy drill bit, small-tooth composite drill bit, ordinary composite drill bit |
| Level 2 (Loose Rock) | Huangshi/Hongshi/Peaty Clay/Sandy Soil/Kaolin Type | 8M/h, 2.4M/P | Alloy drill bit, small-tooth composite drill bit, ordinary composite drill bit |
| Level 3 (Soft Rock) | Strongly Weathered Shale/Slate/Grazing Rock/Schist/Slightly Cemented Sand Layer | 6M/h, 2M/P | Ordinary composite drill bit, triangle composite drill bit, bread-shaped composite drill bit, blade-shaped composite drill bit |
| Level 4 (Slightly Soft Rock) | Shale, sandy shale, oil shale, carbonaceous shale, calcareous shale, sand shale interlayer, argillaceous limestone | 5M/h, 1.7M/P | Ordinary composite drill bit, triangle composite drill bit, bread-shaped composite drill bit, blade-shaped composite drill bit |
| Level 5 (Slightly Hard Rock) | Gravel and gravel layers, collapse layer muddy slate, sericite chlorite greenstone slate, schist, limestone, marble | 3M/h, 11.50M/P | Ordinary composite drill bit, triangle composite drill bit, bread-shaped composite drill bit, blade-shaped composite drill bit |
| Level 6-7 (Medium Hard Rock) | Chlorite, mica, slate, Qianmu rock, schist, silicified limestone, calcite | 2M/h, 1.3M/P-1.1M/P | Blade-shaped composite drill bit, reinforced composite drill bit, helmet-tooth composite drill bit, high-grade electroplated diamond drill bit |
| Level 8-9 (Hard Rock) | Silicified mica rock, gneiss, basalt, diorite, pyroxenite, quartz Anshan porphyry | 1.2M/h, 0.3M/P-0.65M/P | Thickened composite drill bit, blade-shaped composite drill bit, helmet-tooth composite drill bit, conventional electroplated diamond drill bit, thermally stable polycrystalline diamond (TSP) drill bit |
| Level 10-11 (Very Hard Rock) | Granite, granodiorite, gneiss, rhyolite, quartzite | 0.8M/h, 0.5M/P-0.32M/P | Body sintered drill bit, low-degree electroplated diamond drill bit, thermally stable polycrystalline diamond (TSP) drill bit. |
| Level 12 (Extremely Hard Rock) | Quartzite, jasper, angle shale, corundum rock, quartz, flint, jasper | 0.3M/h, 0.16M/P | Body sintered drill bit, low-degree electroplated diamond drill bit, thermally stable polycrystalline diamond (TSP) drill bit. |
