3-Wing Concave PDC Drill Bit for Water Well & Geothermal Drilling
Three-wing concave coreless PDC drill bit for fast, self-cleaning drilling in soft to medium-hard formations used in water wells, geothermal exploration, grouting and coal-mine projects.
Aggressive Three-Wing Cutting with Concave Tracking Stability
This three-wing concave coreless PDC bit is designed for fast penetration in soft to medium-hard sedimentary formations. The concave center helps the bit track, while the open three-wing layout supports self-cleaning and efficient cuttings removal.
Concave Tracking Profile
The recessed center helps stabilize the cutting face and guide the bit during coreless drilling.
Open Three-Wing Geometry
Wide spaces between wings improve flushing and reduce packing in clay-rich formations.
Multi-Project Configuration
Suitable configurations can be built for water wells, geothermal holes, grouting holes and coal-mine work.

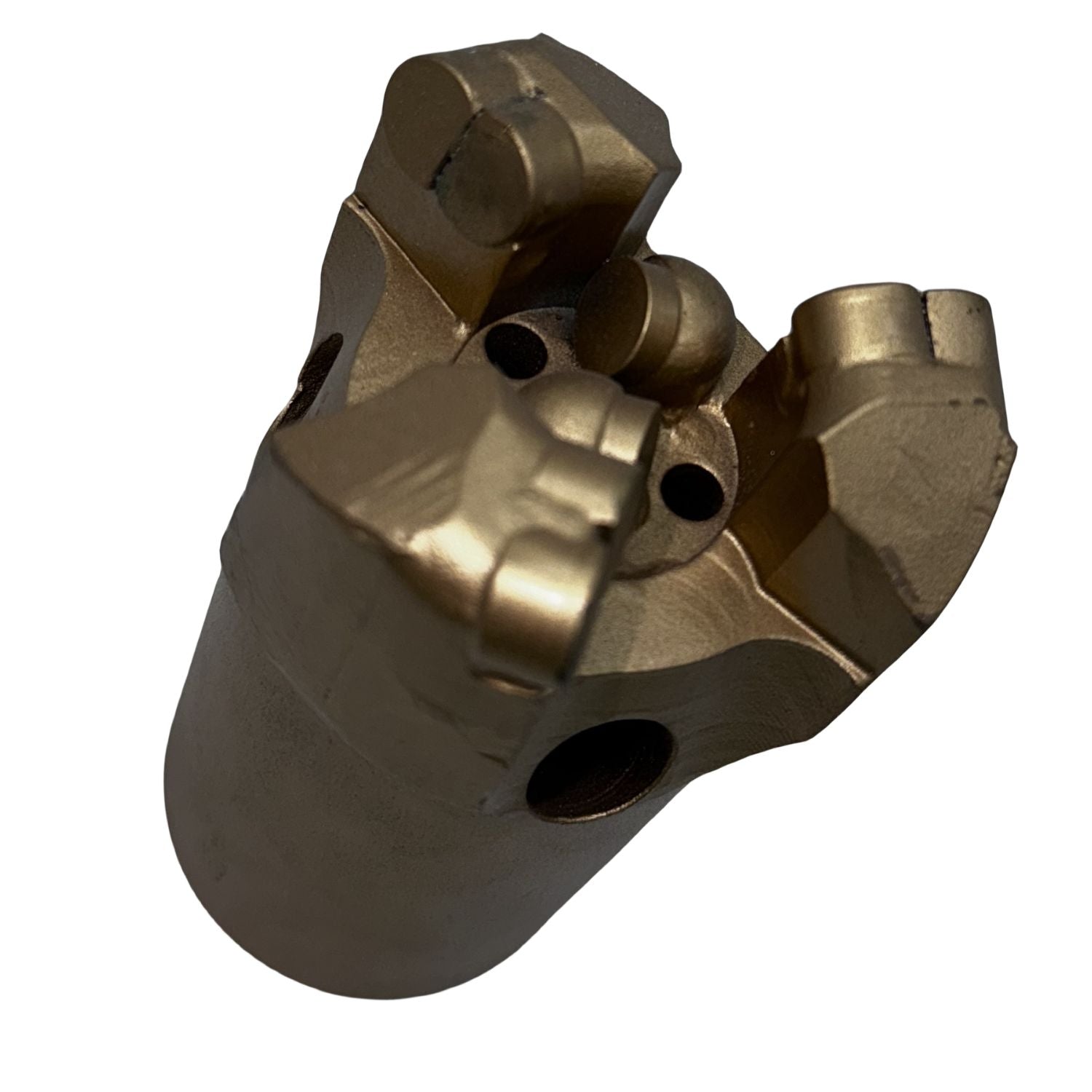

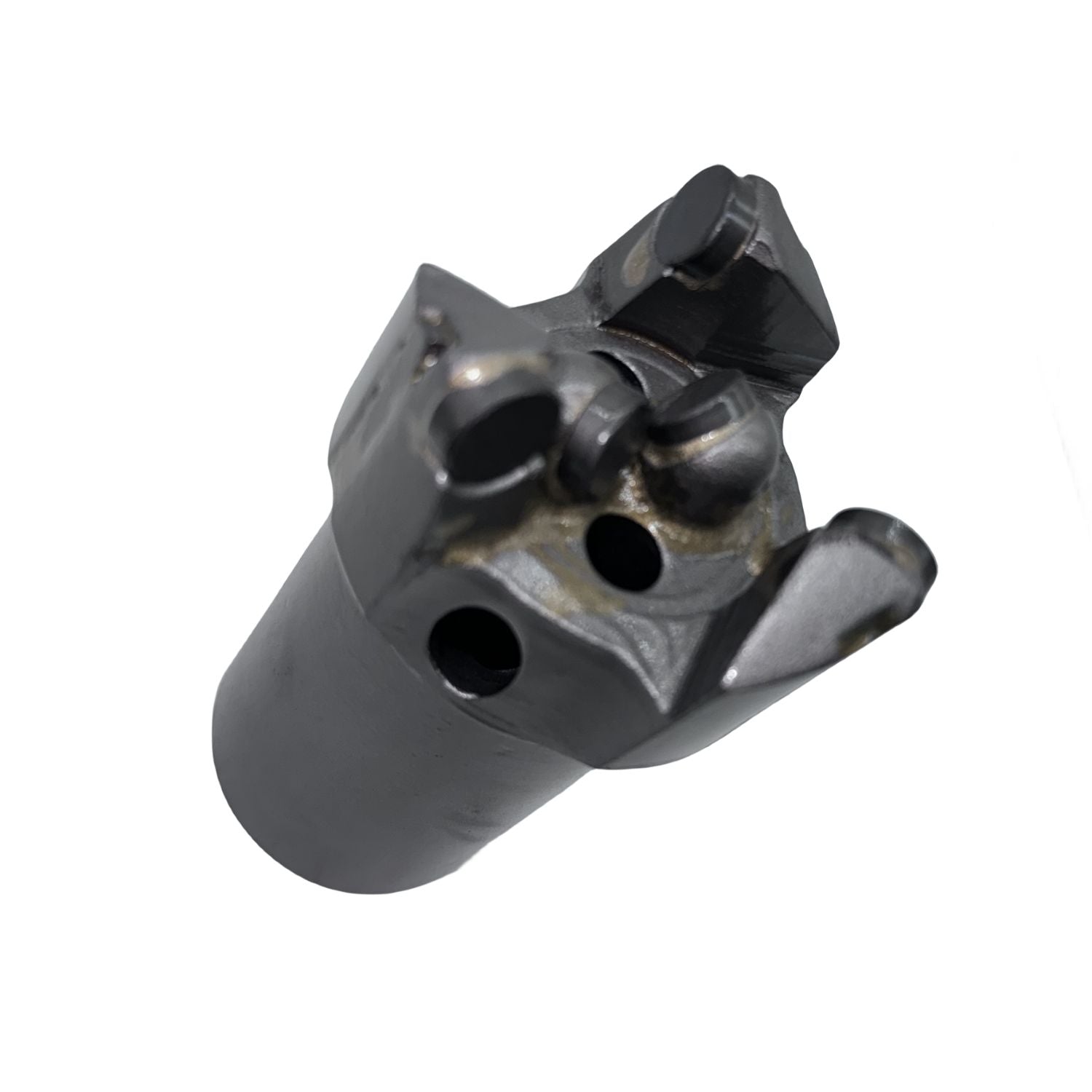

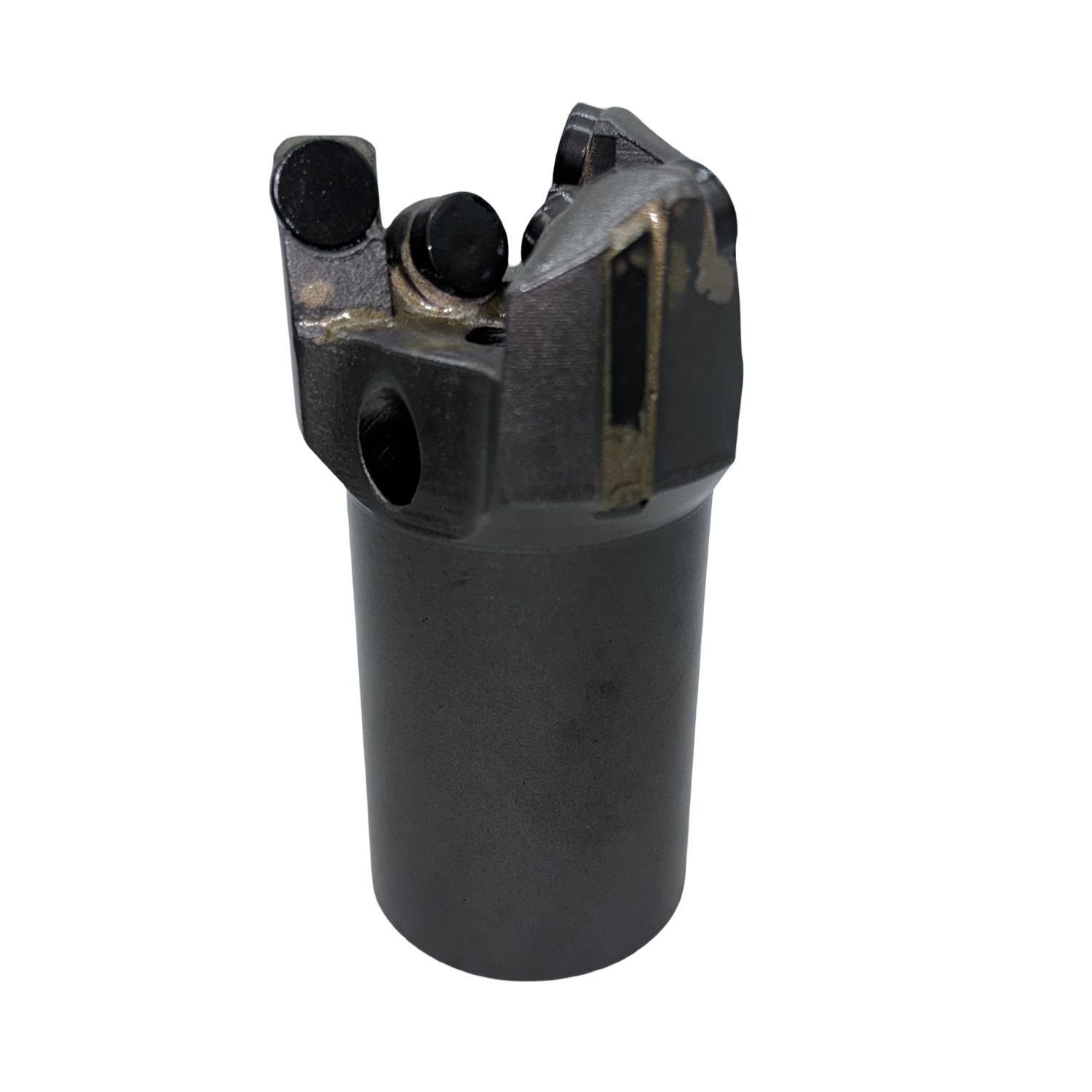

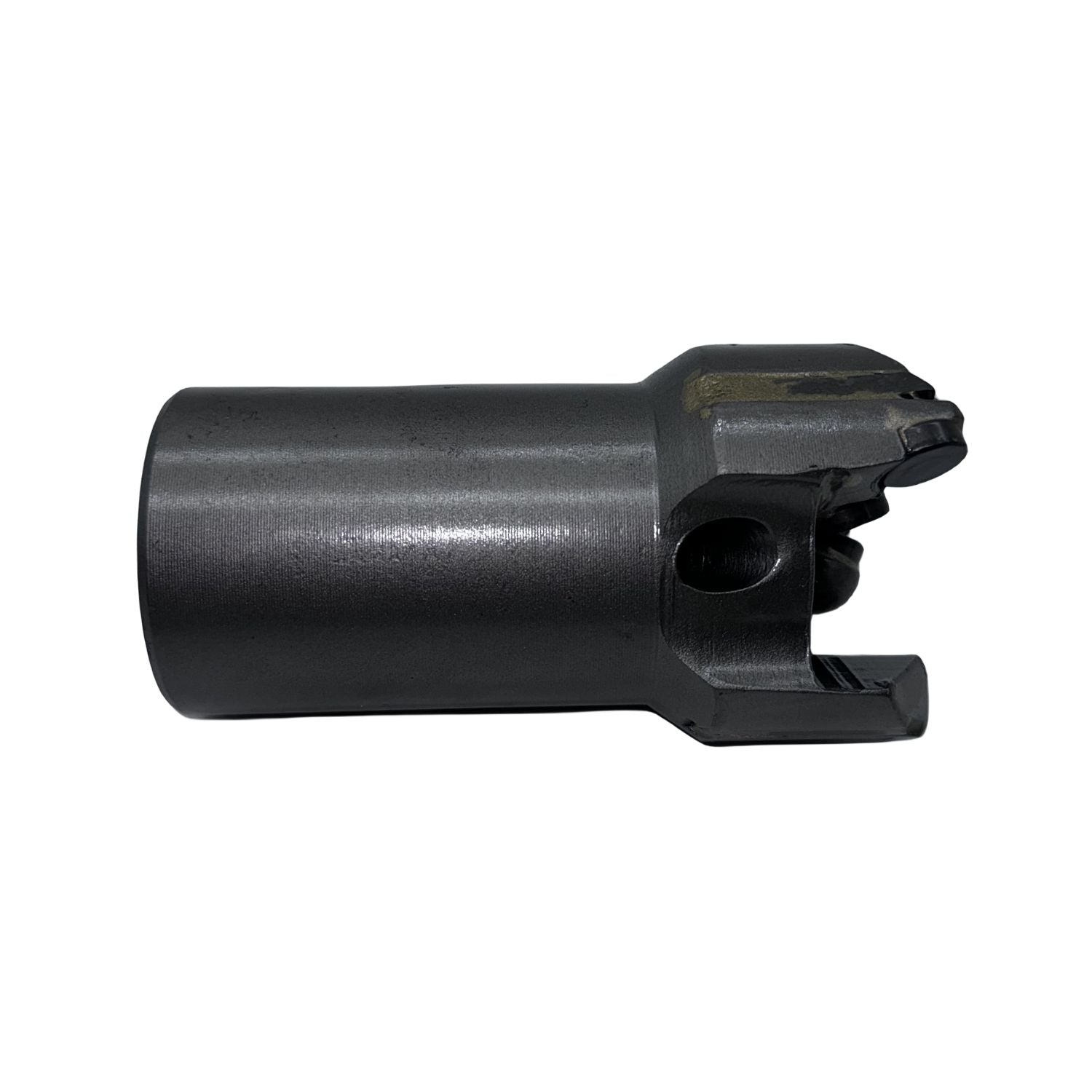

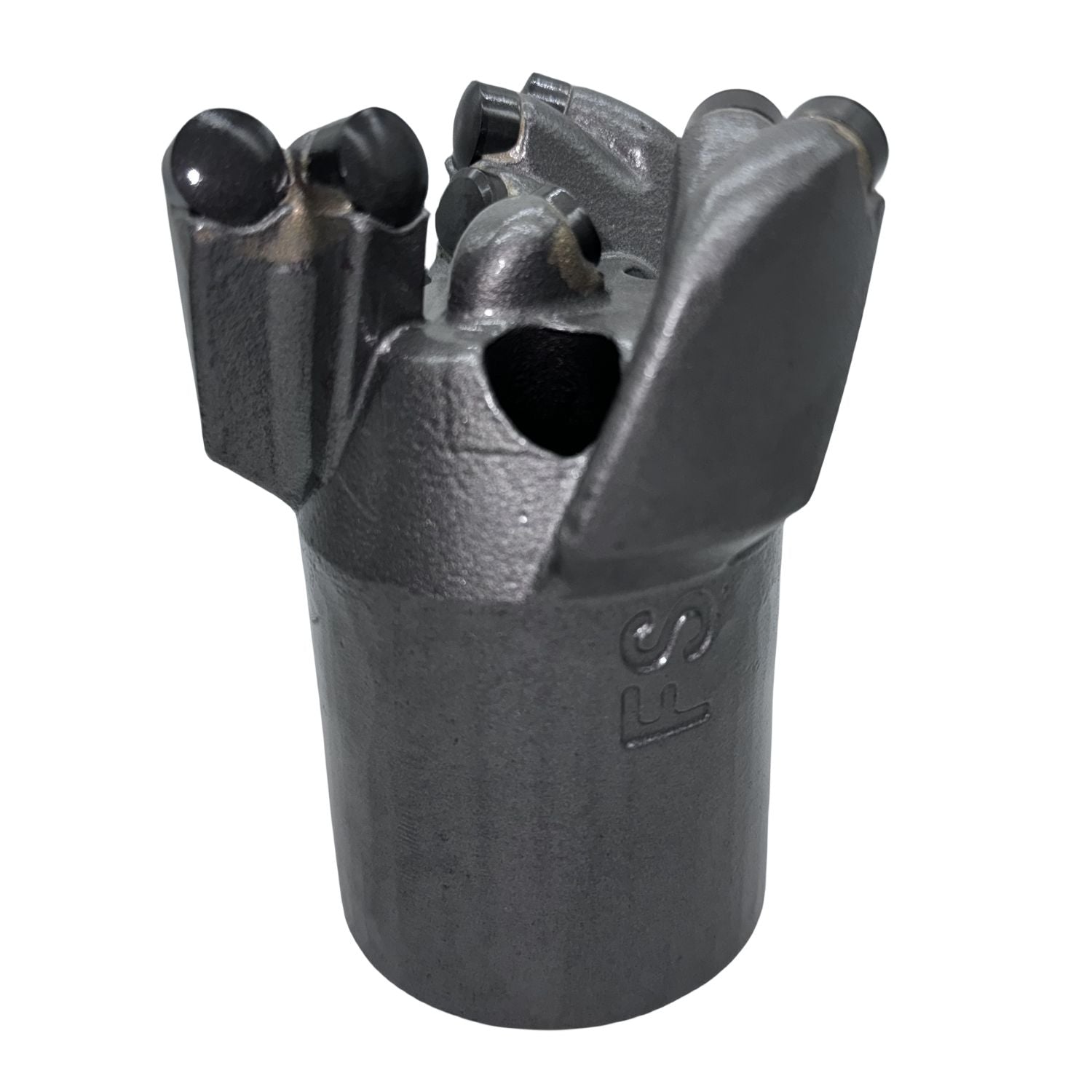

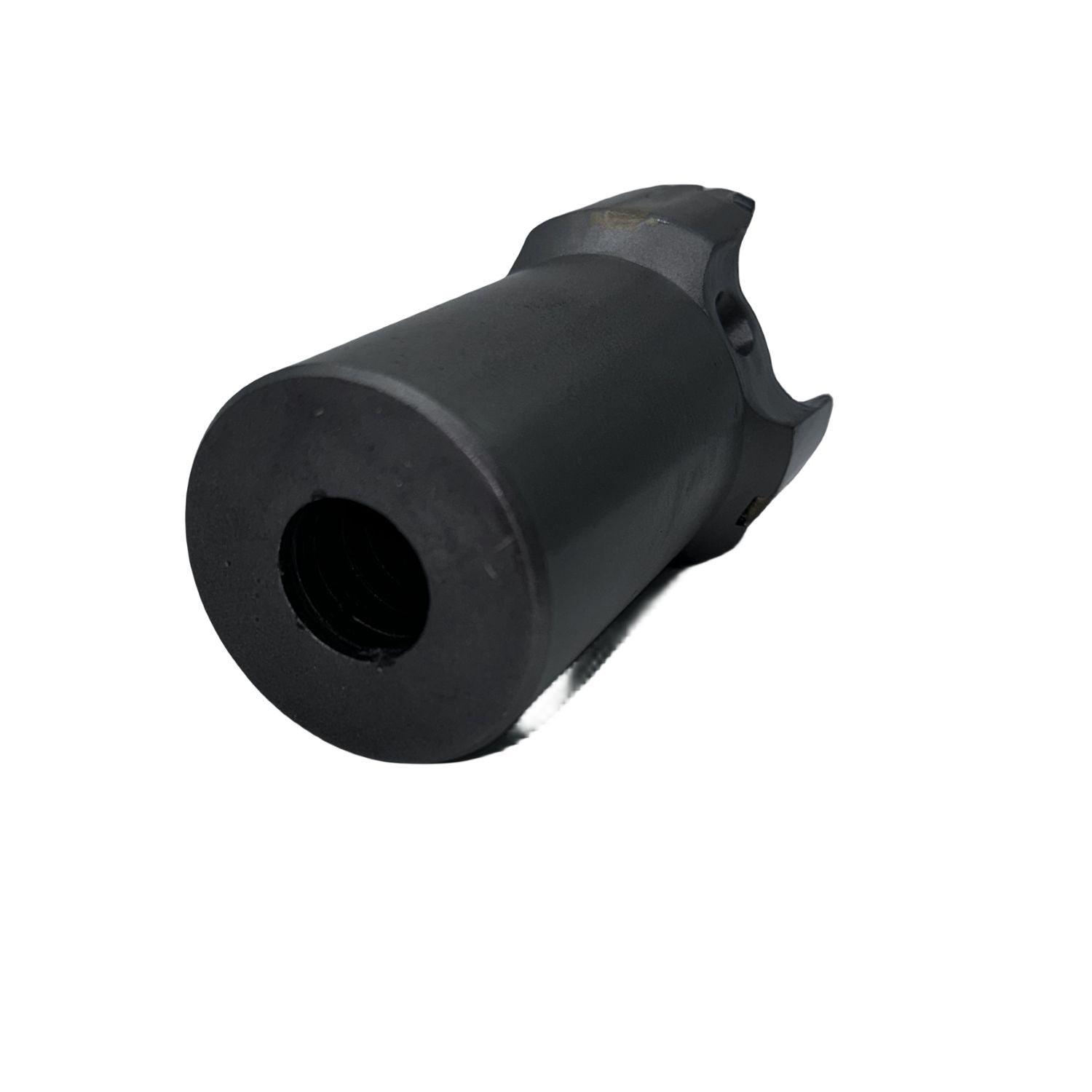

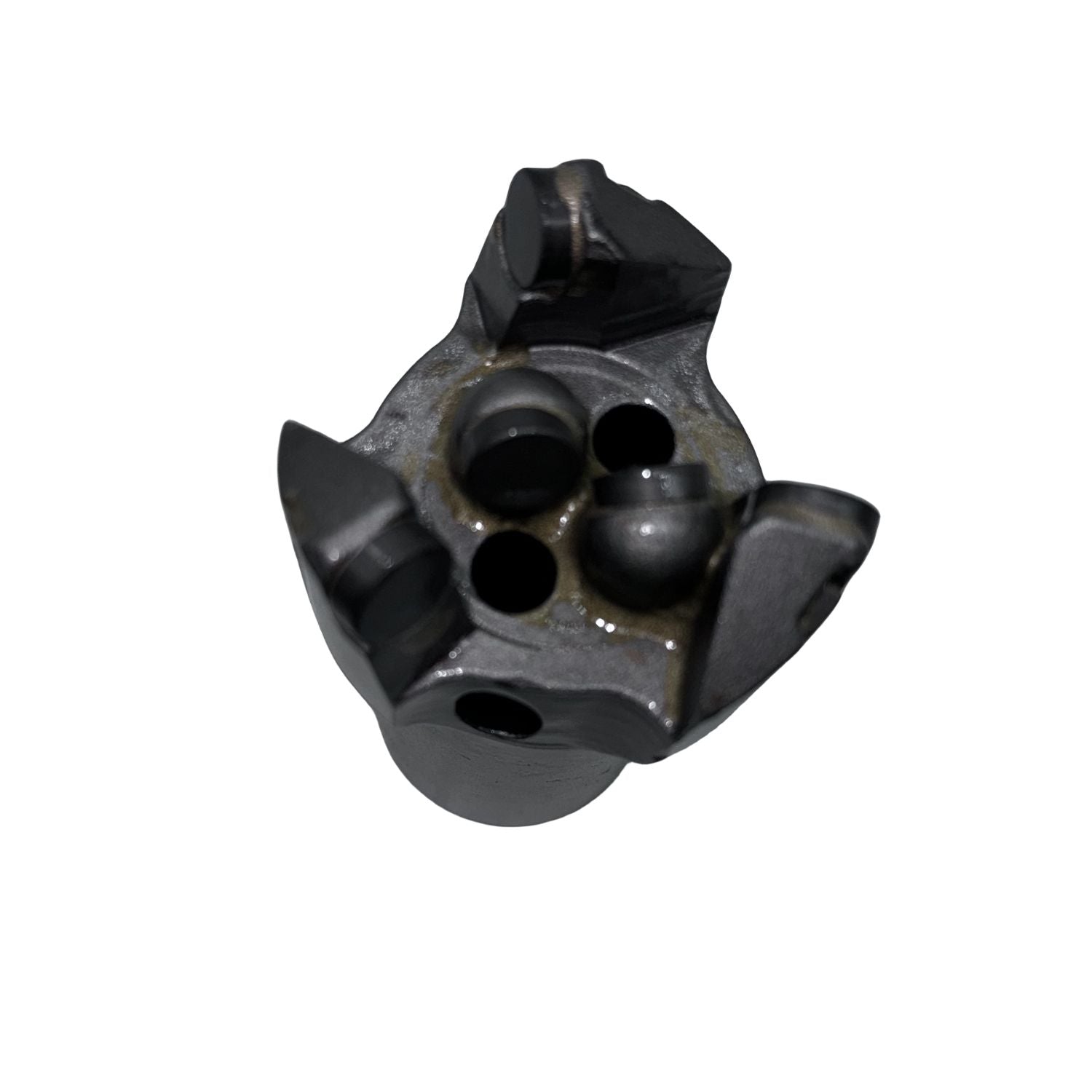

Actual Product Views
Technical Specifications
| Product type | Three-wing concave coreless PDC drill bit |
|---|---|
| Cutting structure | Open three-wing fixed-cutter layout with concave center |
| Body material | Alloy-steel body with PDC / tungsten-carbide cutting structure, depending on confirmed build |
| Primary applications | Water wells, geothermal exploration, grouting holes, coal-mine holes and geological drilling |
| Recommended formations | Soft to medium-hard sedimentary formations such as clay-rich layers, mudstone, shale and sandstone |
| Not recommended without review | Highly abrasive, severely fractured or very hard formations |
| Available sizes | Current selectable sizes are shown above; connection and large diameters require engineering confirmation |
| Customization | Diameter, thread, cutter grade/layout, waterway, hardfacing, color, logo and packaging |
Selection and Operating Guidance
Recommended when
- Fast coreless penetration is required in soft to medium formations.
- Clay or mud makes self-cleaning geometry important.
- The project involves a water well, geothermal, grouting or coal-mine bore.
Confirm before ordering
- Formation hardness, abrasiveness and fracture condition
- Diameter, target depth and required thread
- Rig torque, rotary speed, flushing method and quantity
Performance depends on formation, rig parameters, flushing and operating practice. Final configuration should be confirmed by the technical team.
Fast Quote Checklist
Send diameter, thread/connection, formation description, target depth, rig model, flushing method and quantity. Photos or geological reports improve configuration accuracy.
Hunan FengSu Drill Bit Co., Ltd. has 5 independent workshops and hundreds of employees. It has cooperated with China University of Geosciences and hired dozens of professors and doctors to research the ultra-wear-resistant material, with over 50 applications for patents. It's the manufacture of drill bit products which are efficient and strong enough to meet varied drilling requirements like natural gas, oil, coal exploration, geological exploration, and water wells. Certainly, our products will work perfectly under all kinds of rock environments. Adhering to the concept of unremitting technological innovation, strict quality control, and guaranteeing the reliability and professionalism in the products that we offer.
